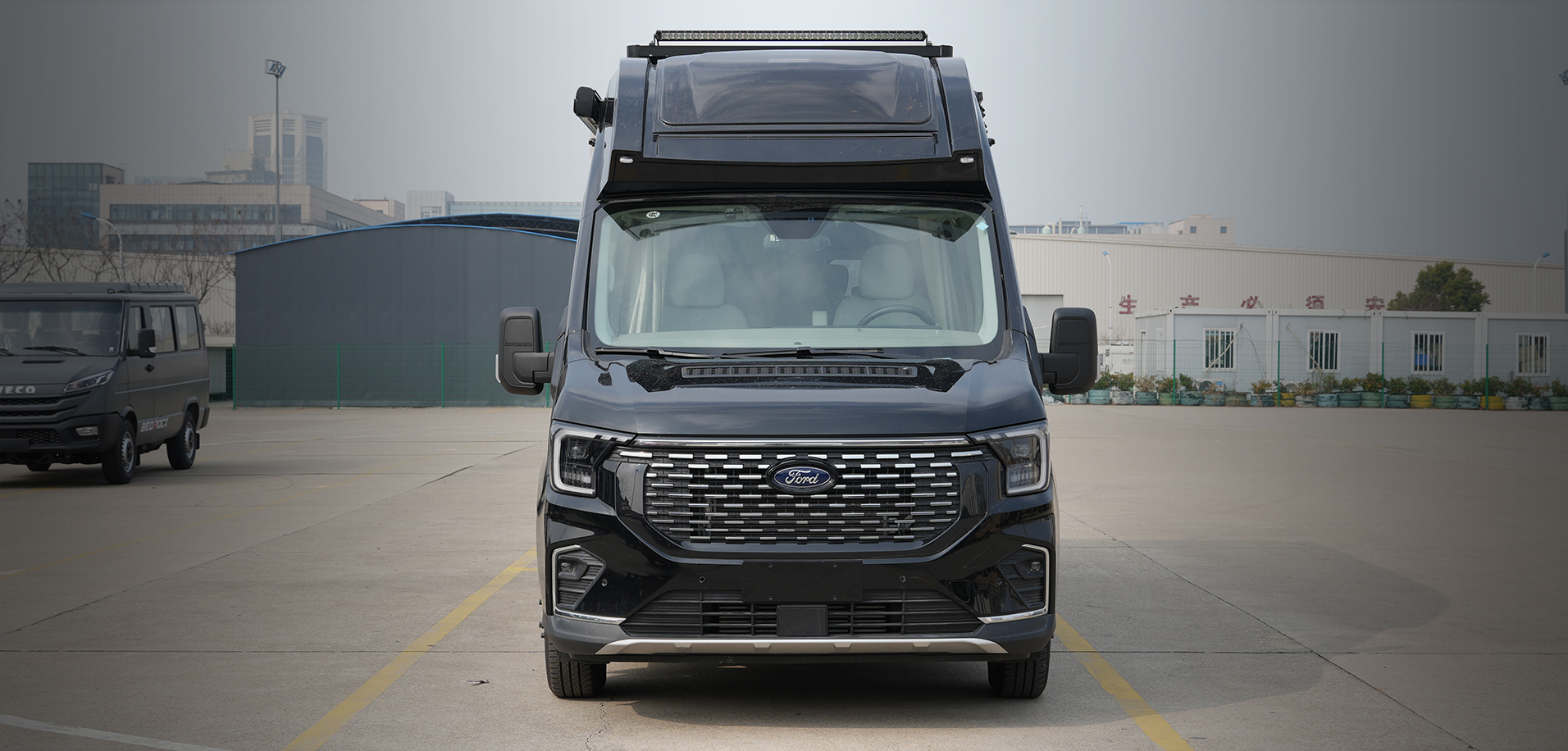

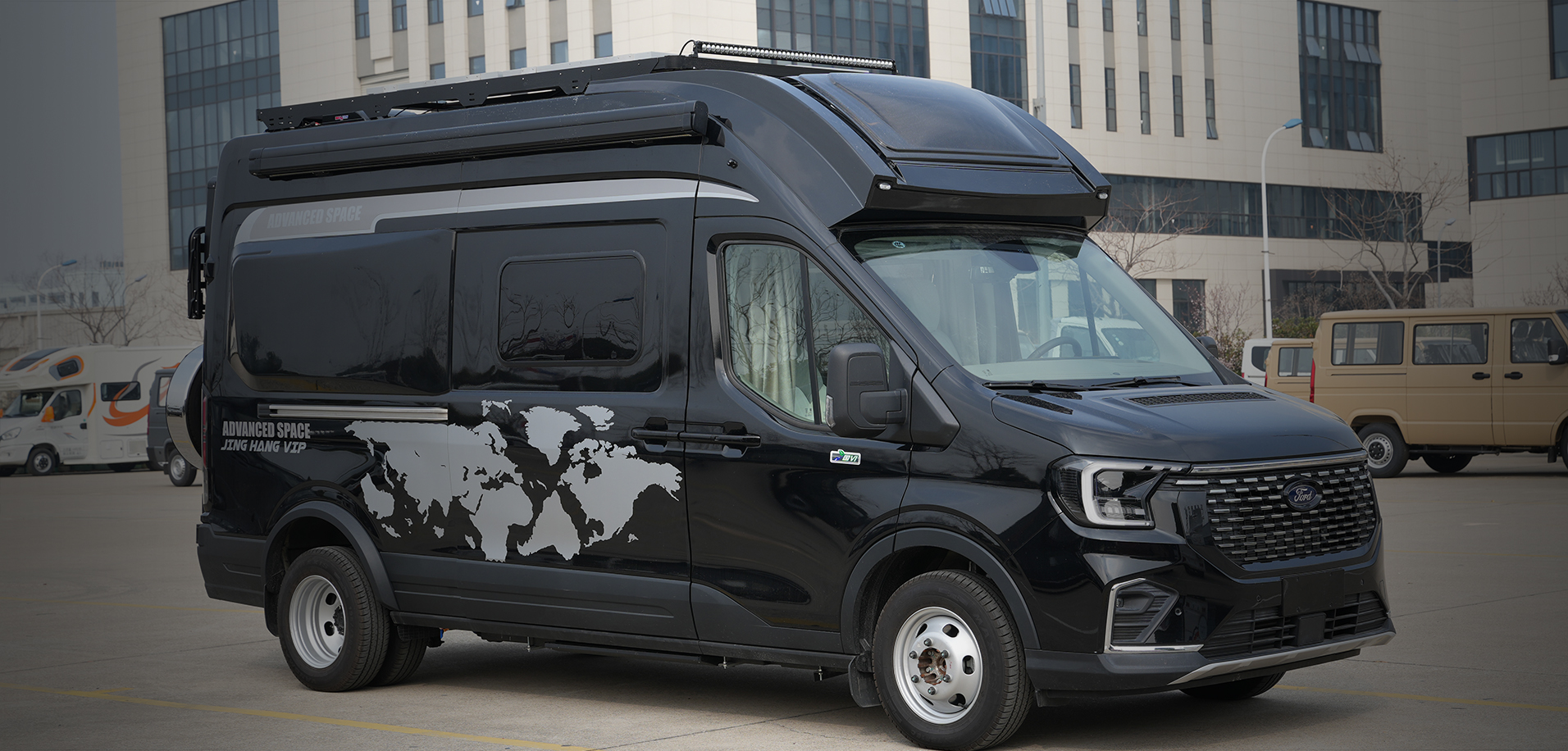

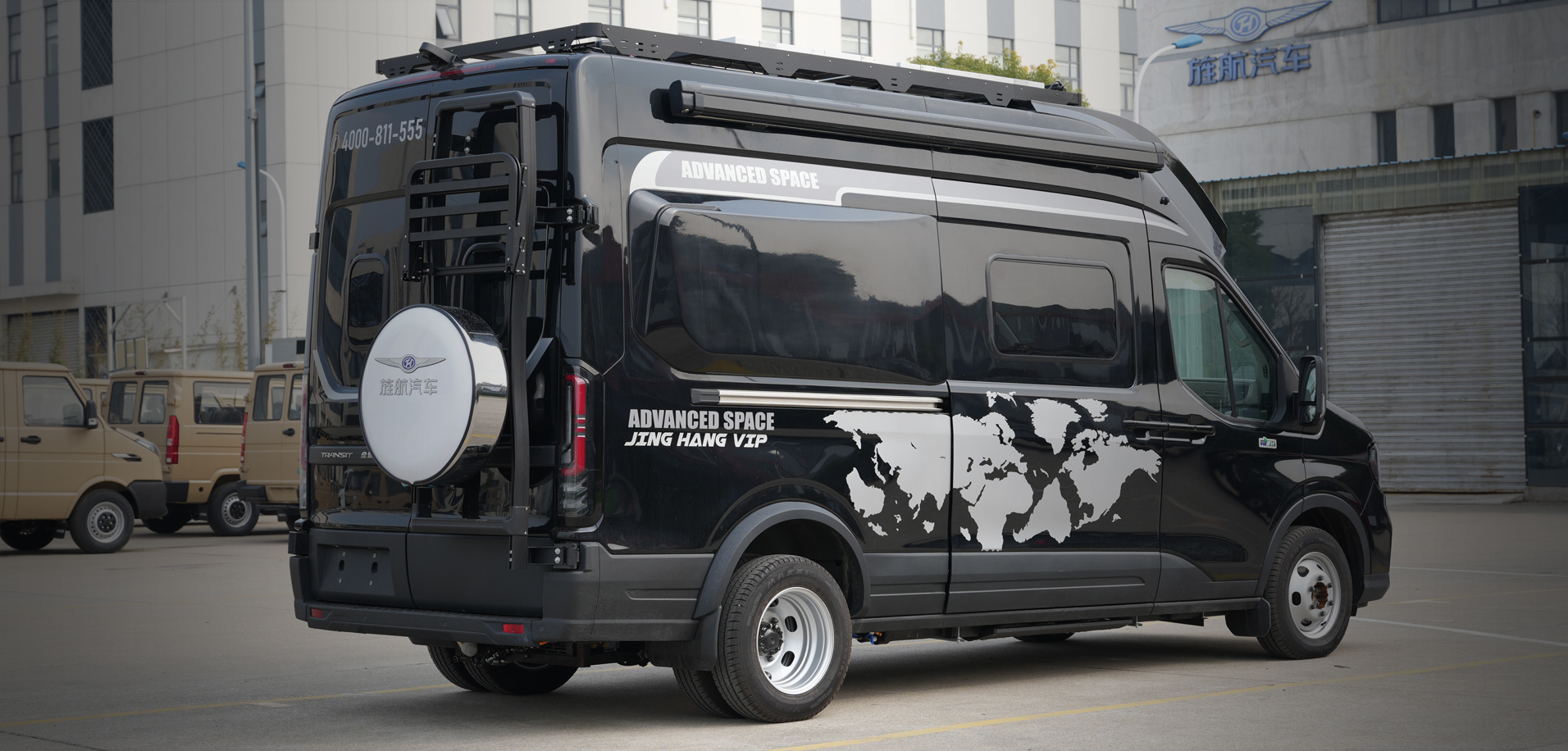

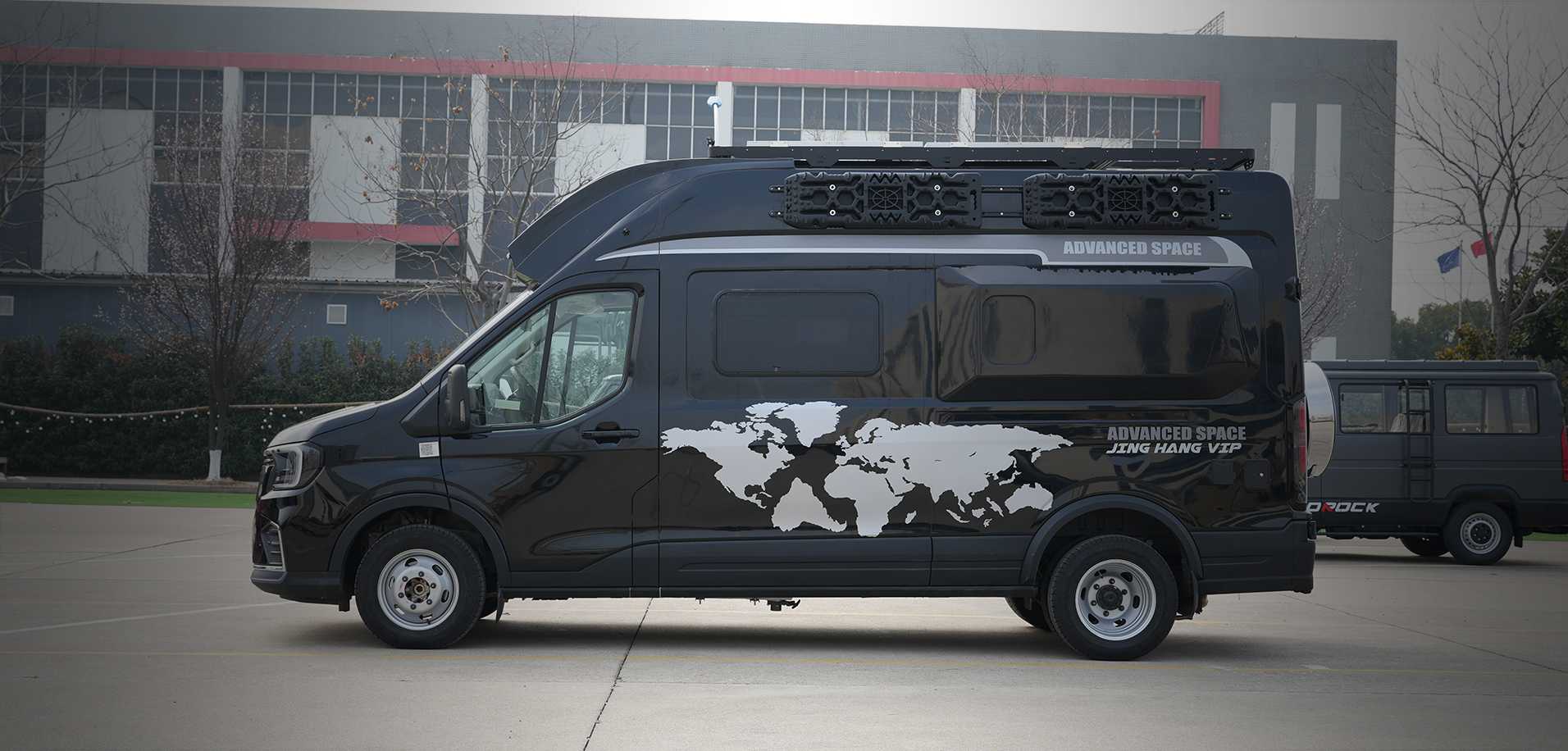

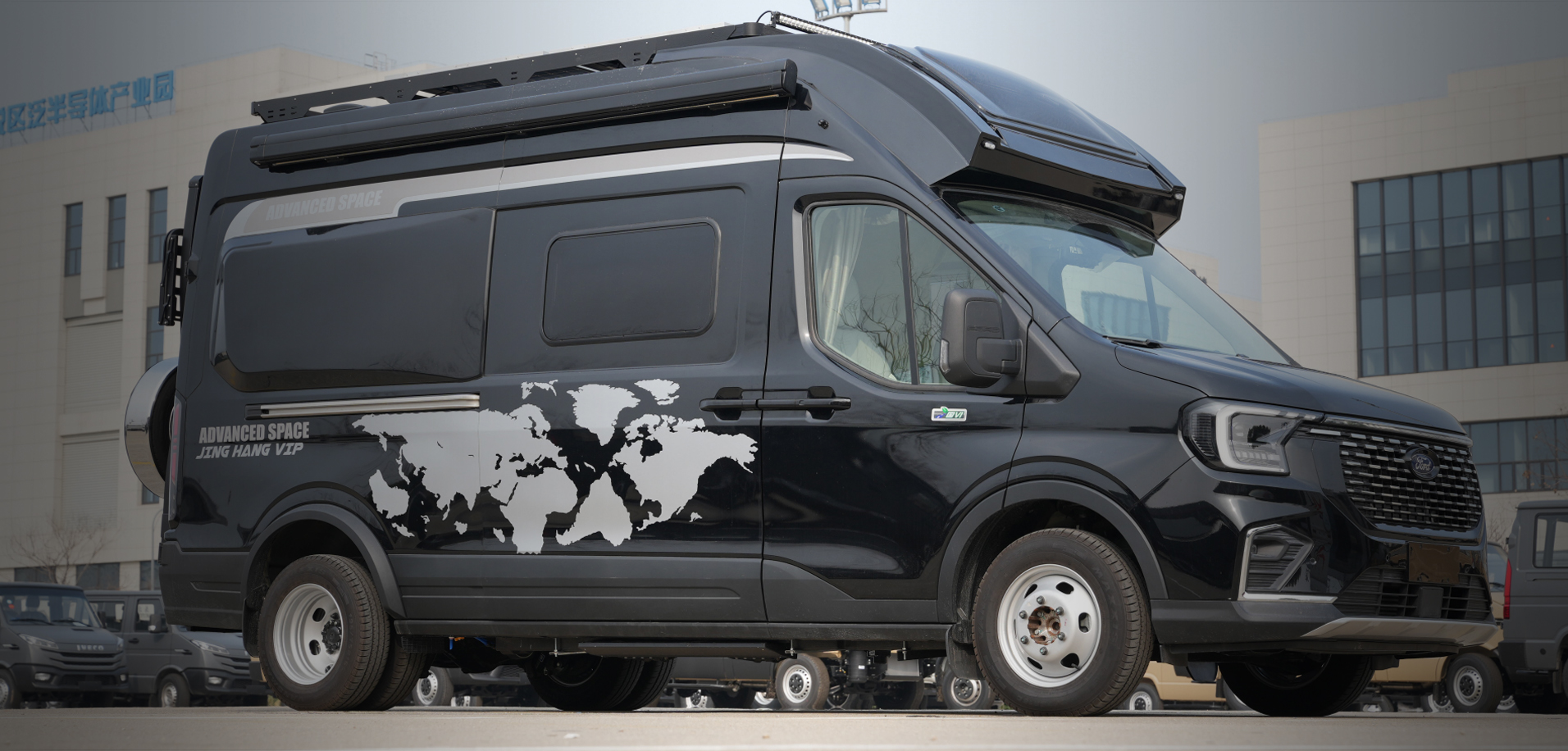

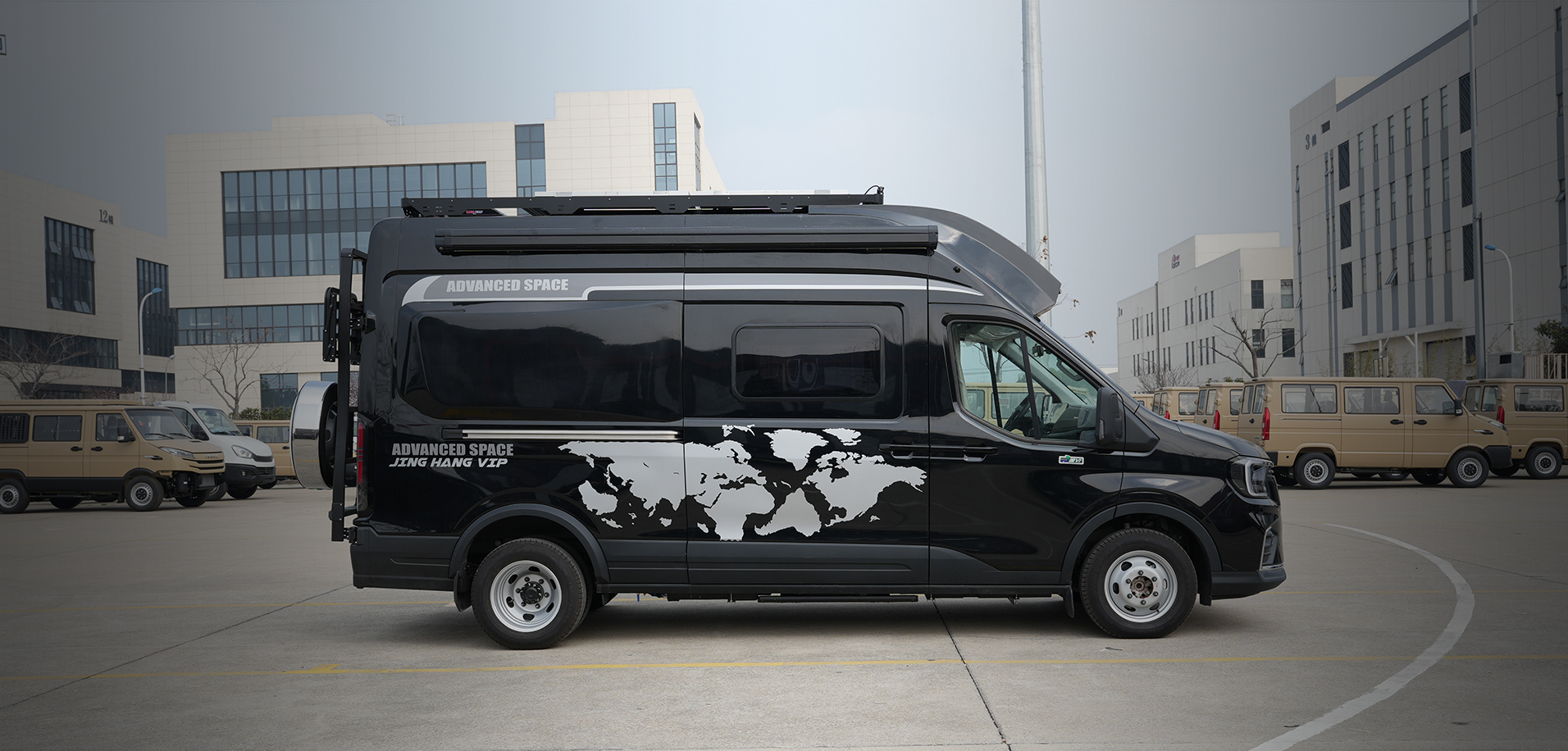

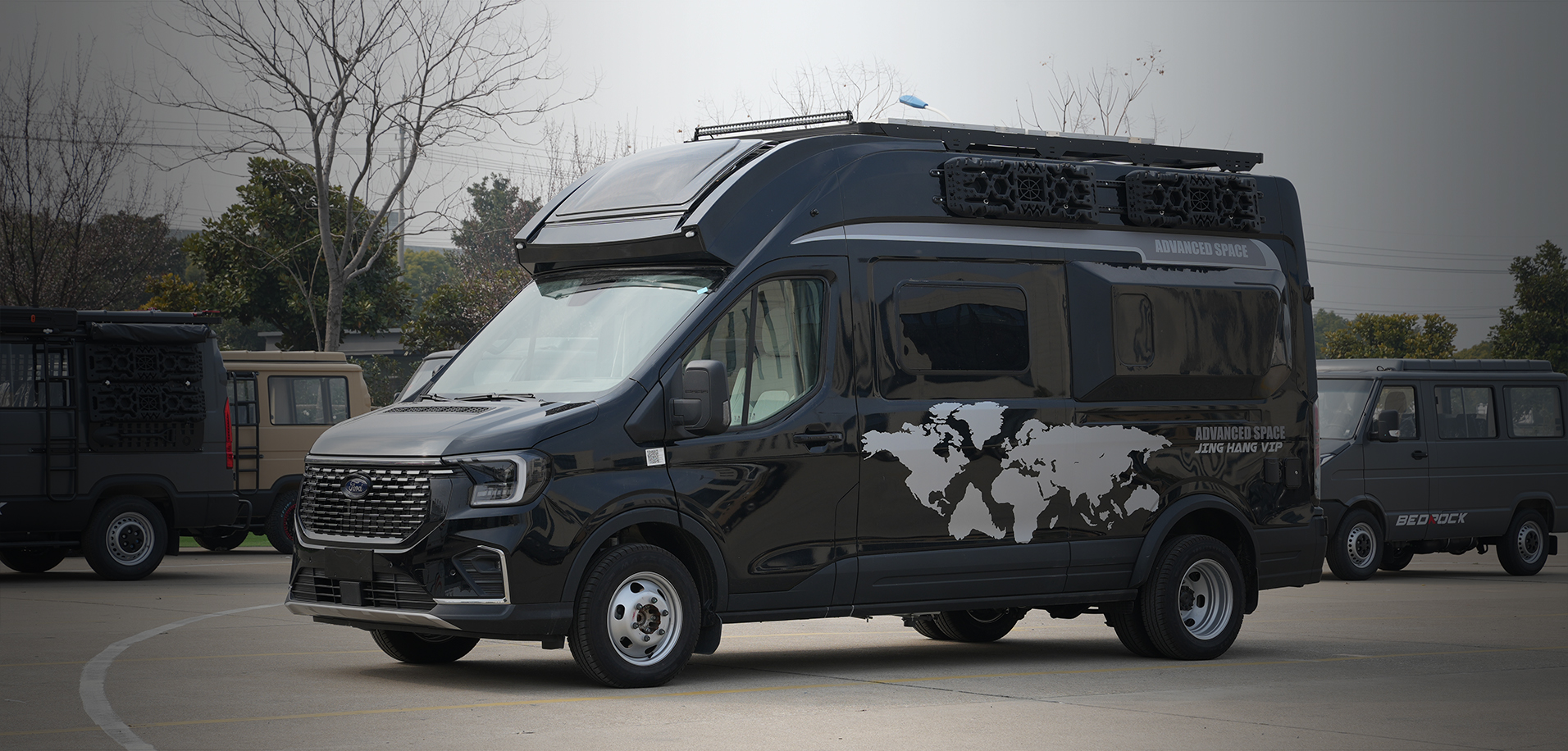

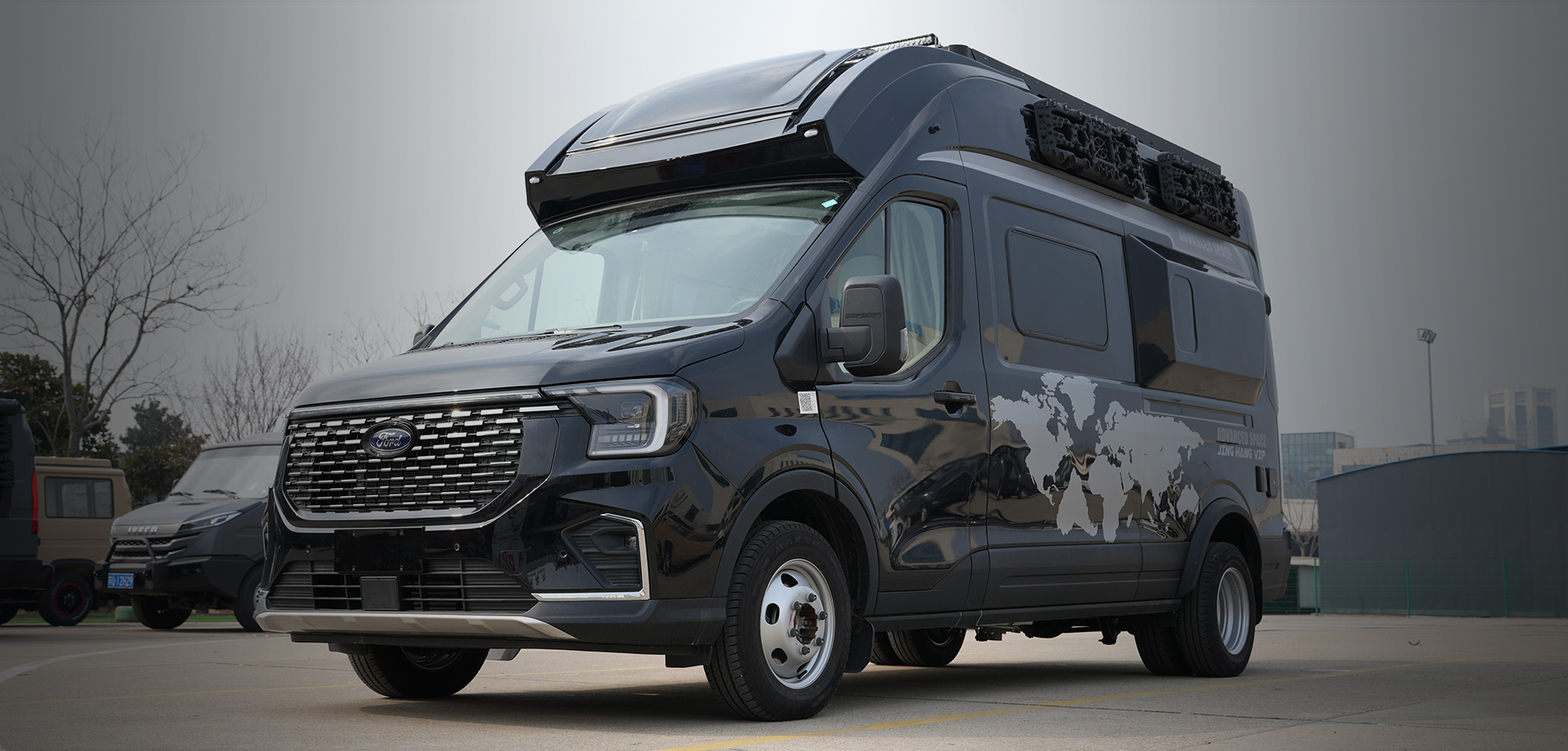

Built on the Ford T8 chassis, the B-type RV combines excellent handling and comfortable space to redefine your travel experience. Whether it is urban exploration or natural adventure, the Ford T8 B-type RV can provide you with reliable support, making every journey full of freedom and comfort.
The Ford T8 B-type RV cleverly uses the interior space design and flexible layout to meet diverse travel needs. Whether it is a family trip or a trip with friends, it can provide you with a spacious and comfortable living environment to make the journey more comfortable.
|
model |
Ford V363 Automatic Transmission National VI-4.5T |
category |
FT-363BS1-2025 | |
|
layout |
B-type rear longitudinal bed lift upper and lower bunks - Business Travel Edition |
Number of passengers |
6 people | |
|
color |
Body |
□ Black | ||
|
Plate |
□ High gloss white + skin-like gray | |||
|

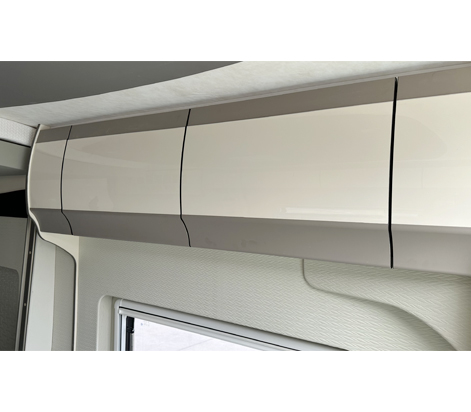

Wall cabinet door panel |
□ High gloss white + skin-like gray | |||
|
leather |
□ Skin-feel grey + warm white | |||
|
Chassis parameters |
Displacement (ml): 2.296 |
Dimensions |
5995×2165×2835mm | |
|
Fuel tank: 80L |
Maximum power (Ps/rpm): 128 |
Wheelbase: 3750mm | ||
|
National VI emission standards |
Transmission: 8AT |
Fuel type: diesel | ||
|
Tire size: 195/75R16 |
Dual generator (12V+48V) |
Navigation integrated machine (reversing image) | ||
|
Configuration |
Appearance |
Streamlined front top |
Streamlined blind windows on both sides |

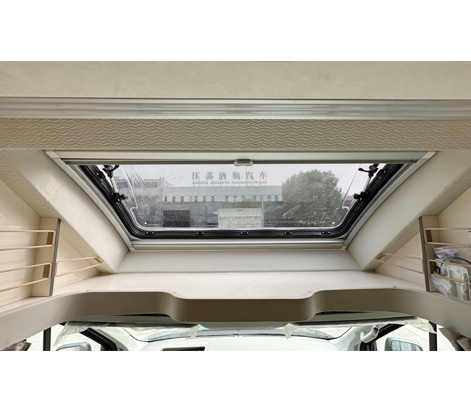

Forehead curved skylight |
|
RV special push window |
RV dedicated mains interface |
RV dedicated water inlet | ||
|
Electric first level sinking step |
3m manual awning + light strip |

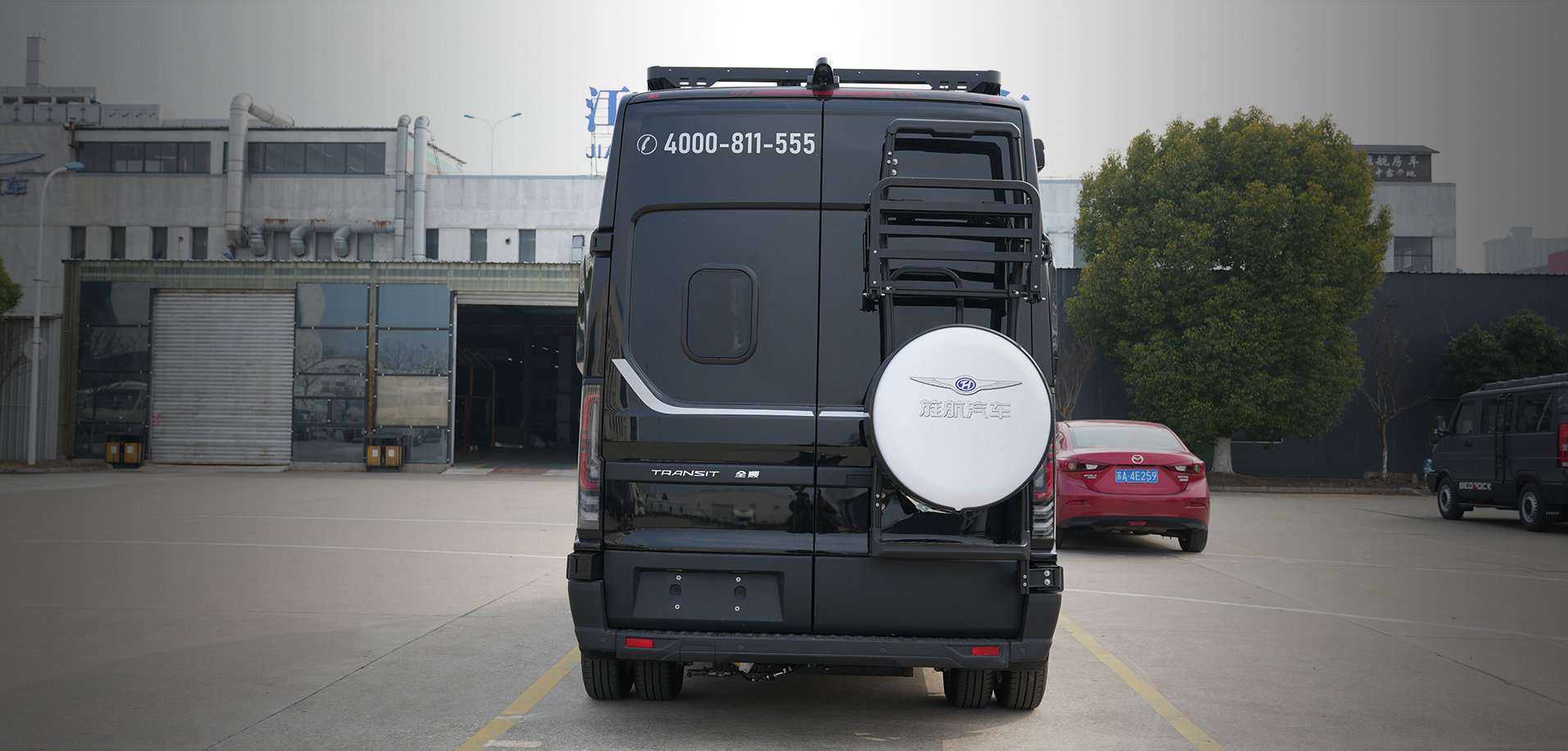

Spare tire rack | ||
|
Roof integrated luggage rack |
Multifunctional ladder + rear rack kit |
Escape board × 2 | ||
|
Water tank |
Clean water tank 100L |
Gray water tank 45L |
| |
|

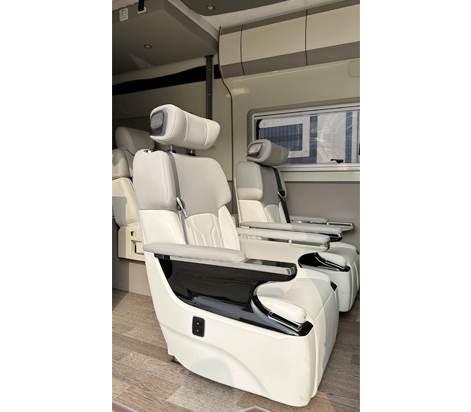

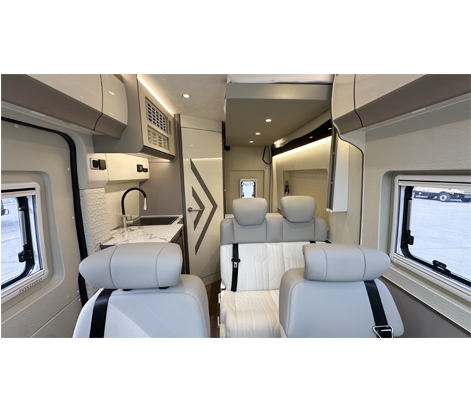

Seats |
Front row 1+1 single airline seat |

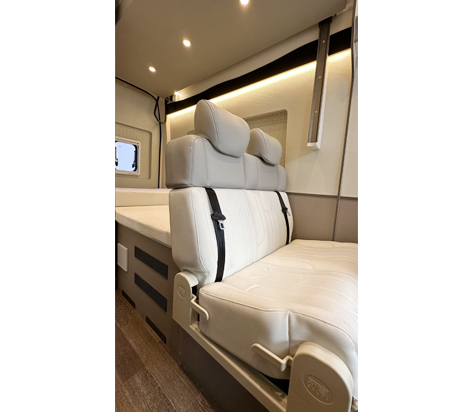

Rear double folding seats |
Driver and passenger seats | |
|

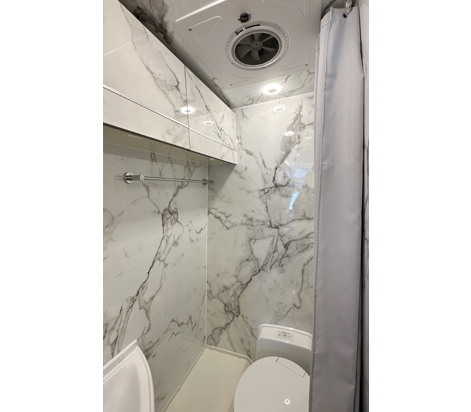

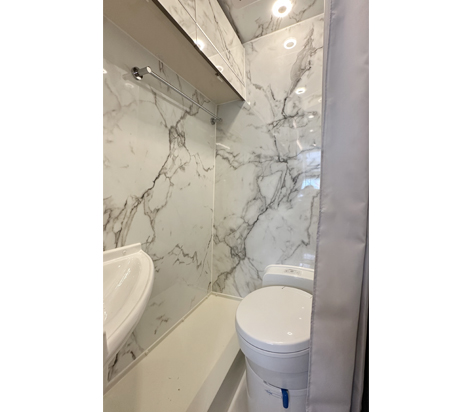

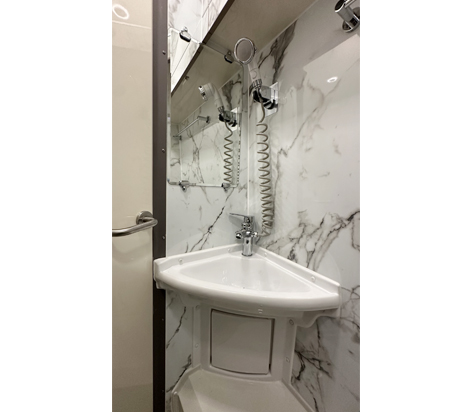

bathroom |
Bathroom waterproof floor support |
Rotating toilet |
ventilator | |
|
Faucet with shower head |
Makeup mirror |
Shower Curtain Set | ||
|

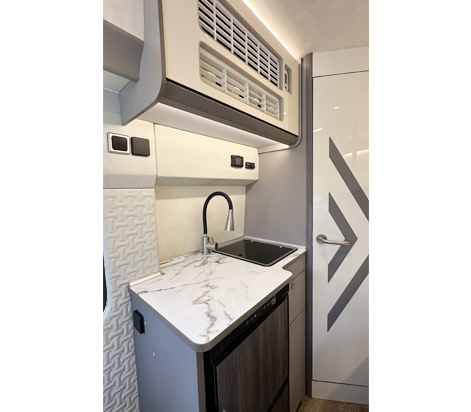

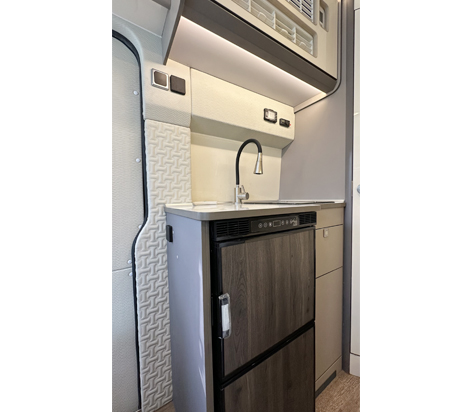

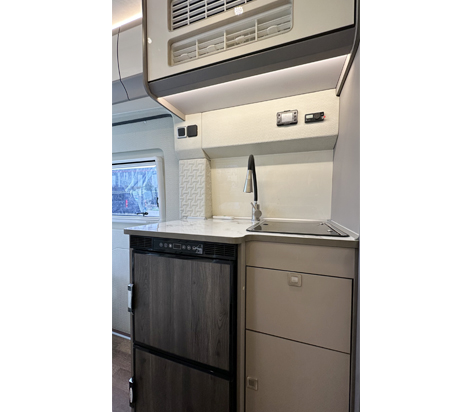

kitchen |
98L Refrigerator for RV FY2108E |
Countertop faucet |
Vegetable washing sink | |
|
Water, Electricity and Gas |

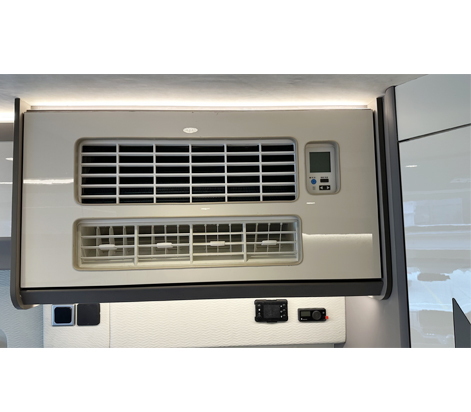

48V KME Split Inverter Air Conditioner |
Eberspächer 5KW water heater |
Water heater 8.5L | |
|

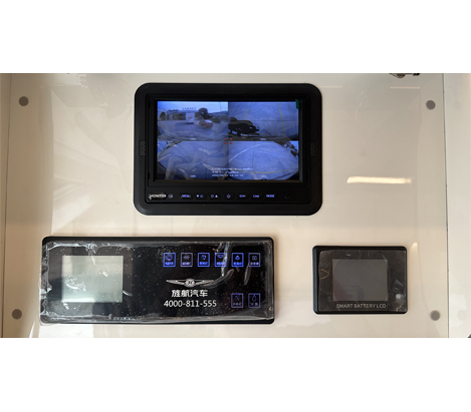

48V integrated control system (12 channels) |
48V200AH RV lithium battery |
6000W Bidirectional Inverter | ||
|
400W solar panel (including controller) |
Four-way monitoring |
Streaming media rearview mirror | ||
|
5KW Diesel Parking Heater |
220V power socket |
USB power socket | ||
|
Imported water pump |
Ambient Lighting |
CO/Smoke Alarms | ||
|
Bedside reading lamp |
External power cord 15 meters |
External water pipe 10 meters | ||
|
decorate |
Imitation solid wood floor leather |
Luxury furniture set |
Luxury soft interior | |
|

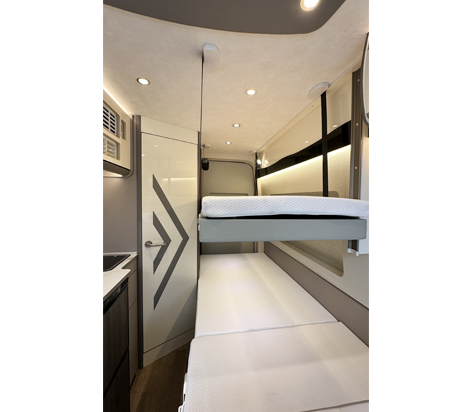

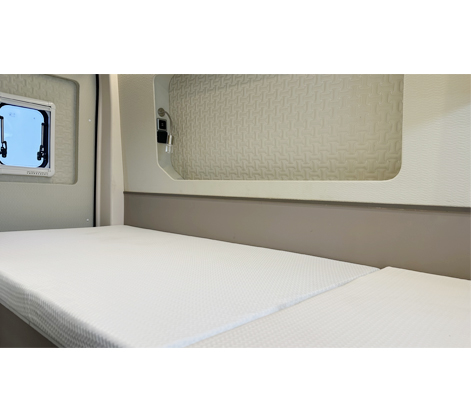

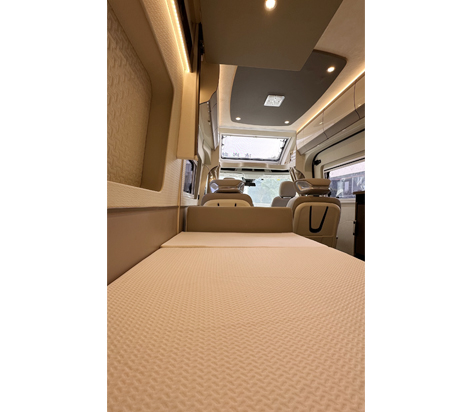

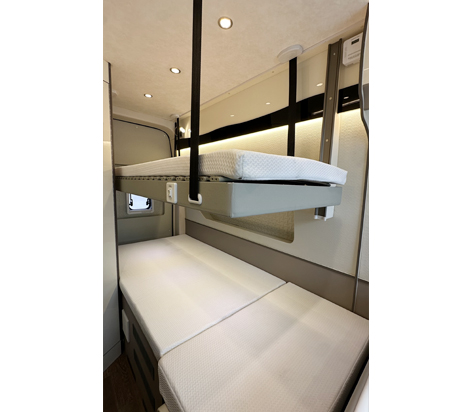

Rear longitudinal electric lift bed 1850×700mm |
Left vertical splicing bed 2000×900mm |
| ||
|
