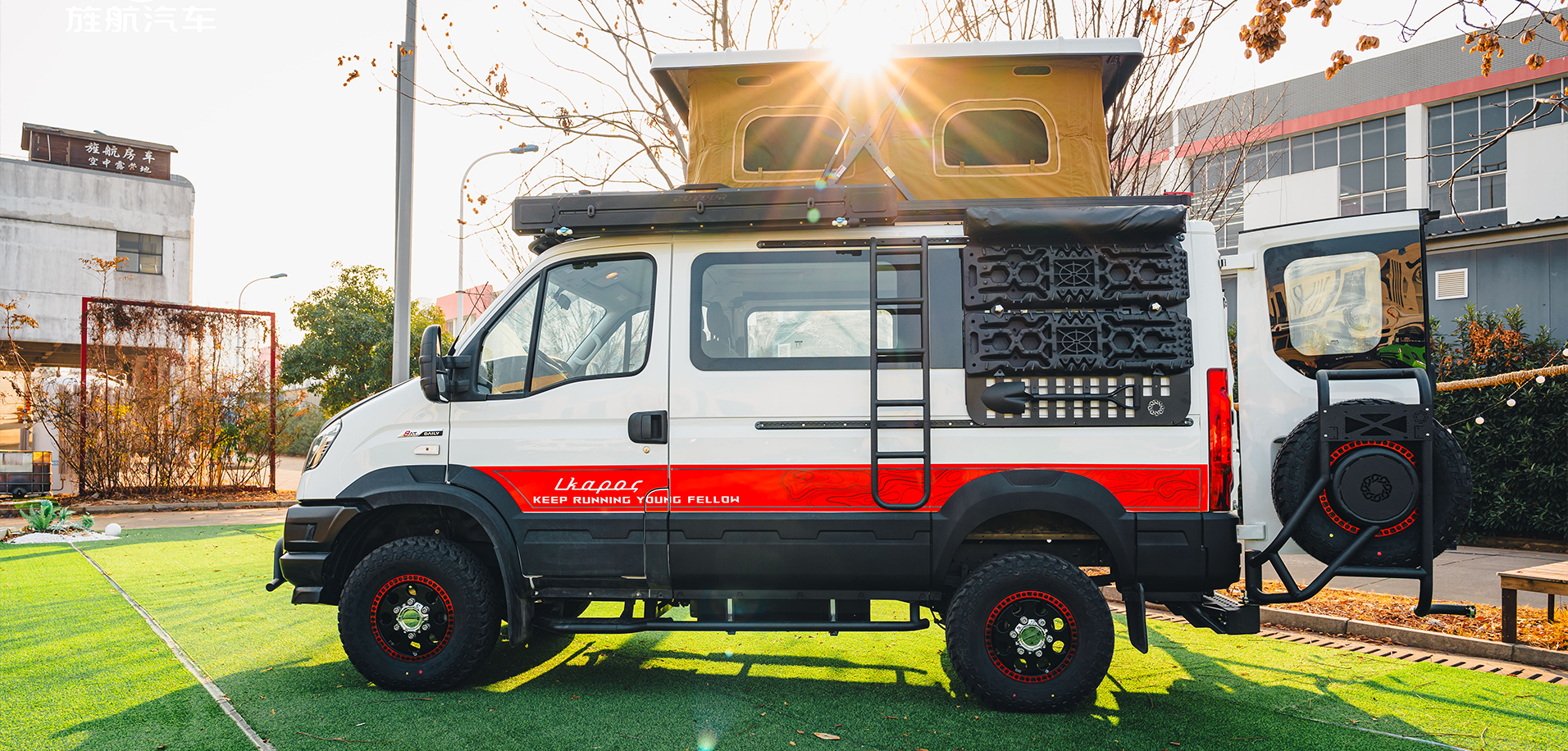

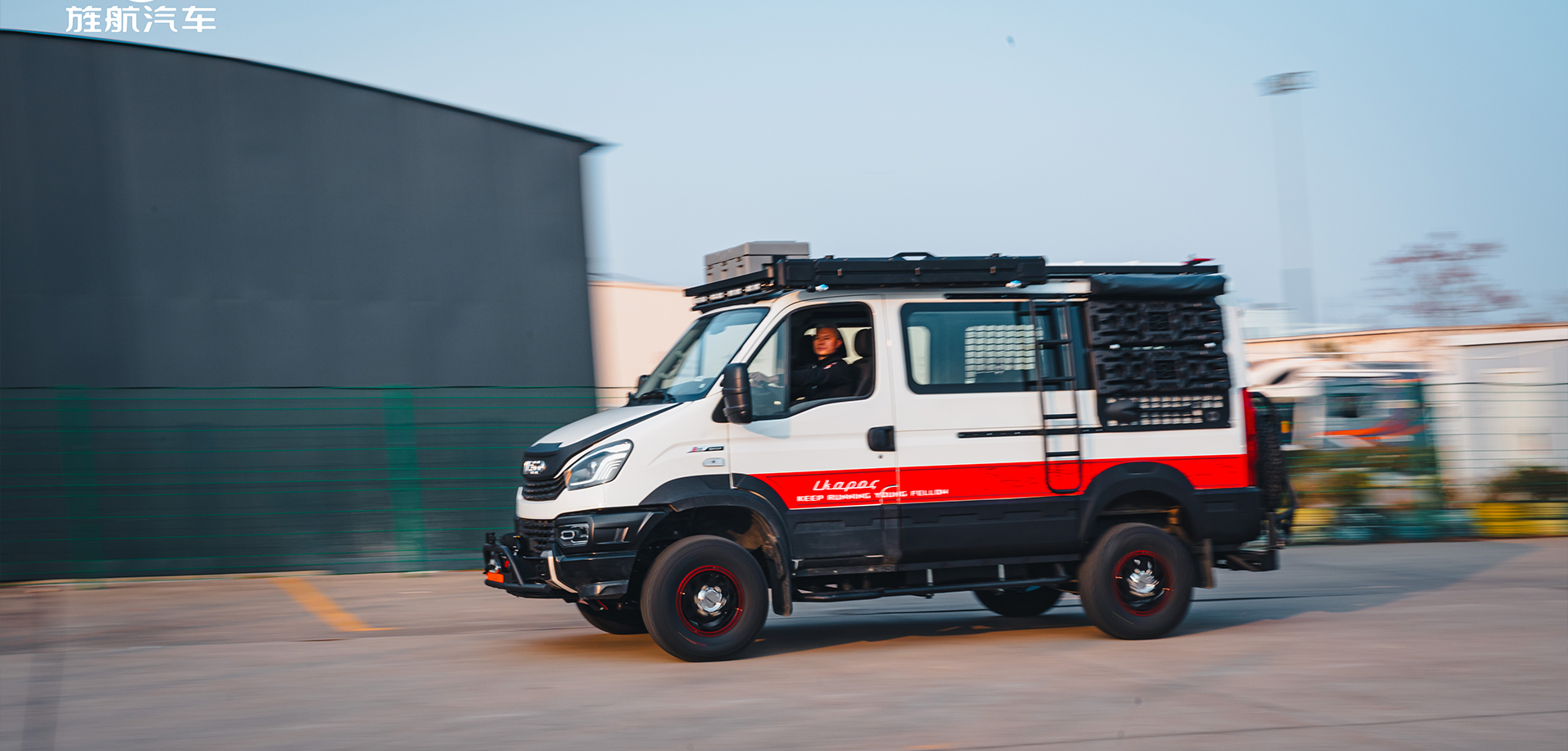

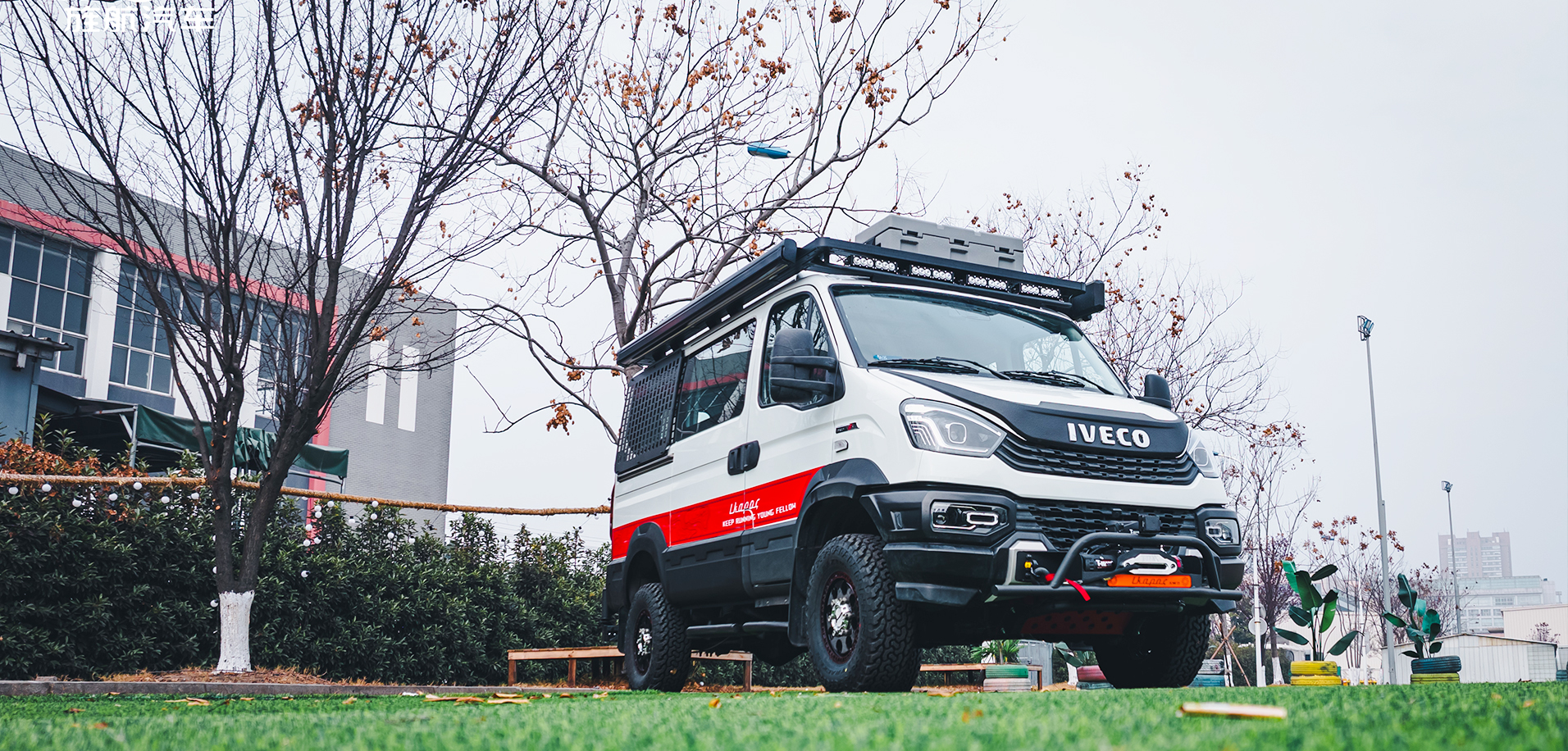

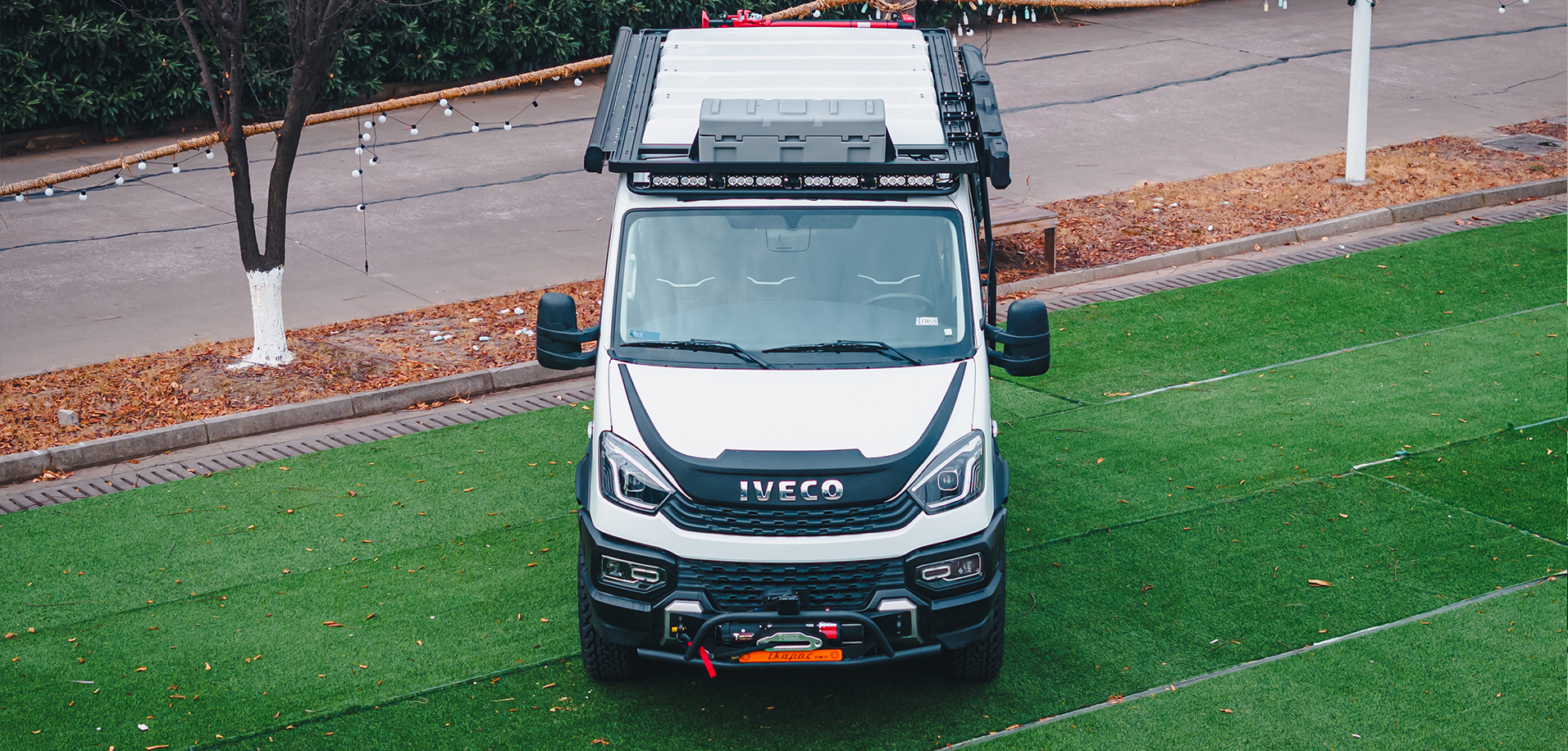

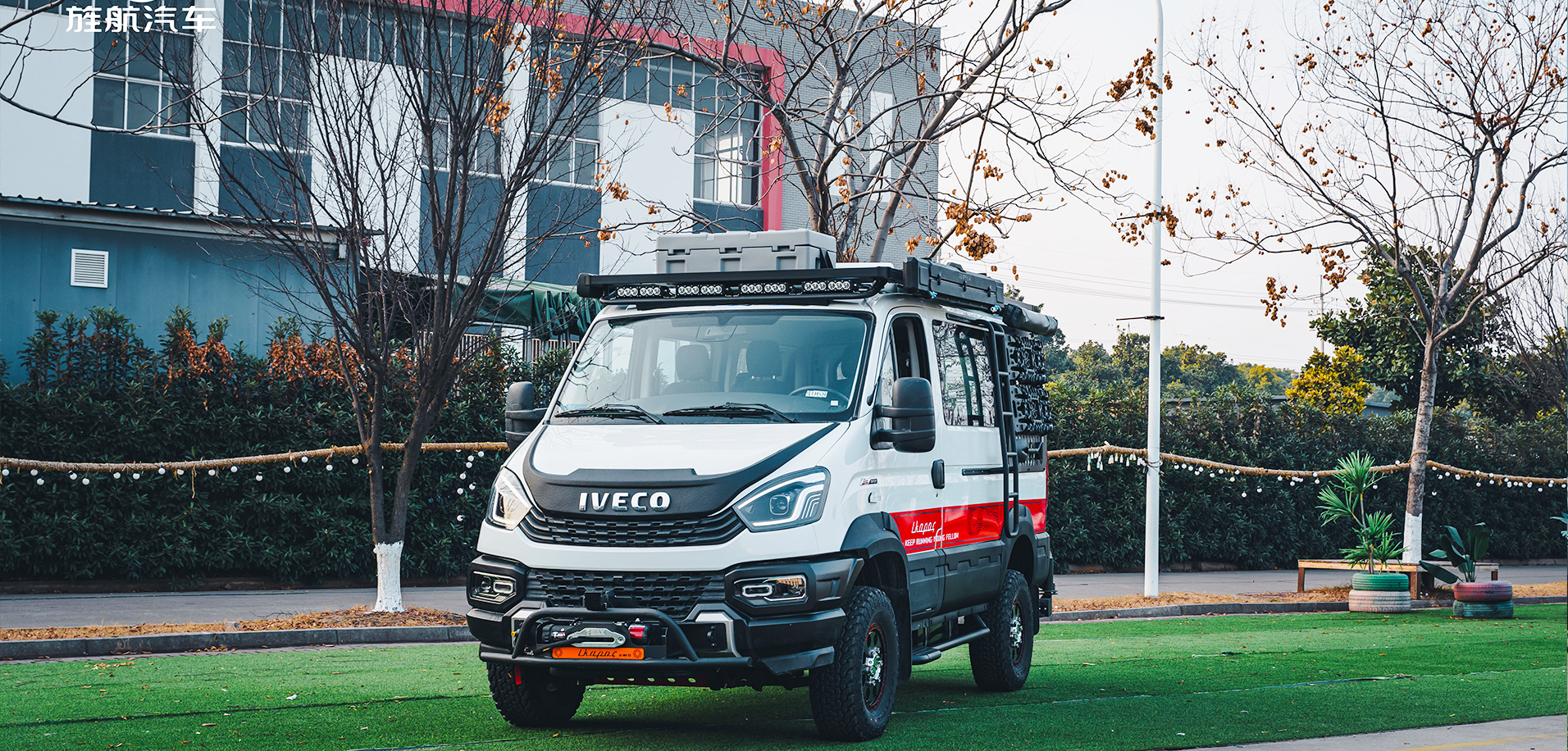

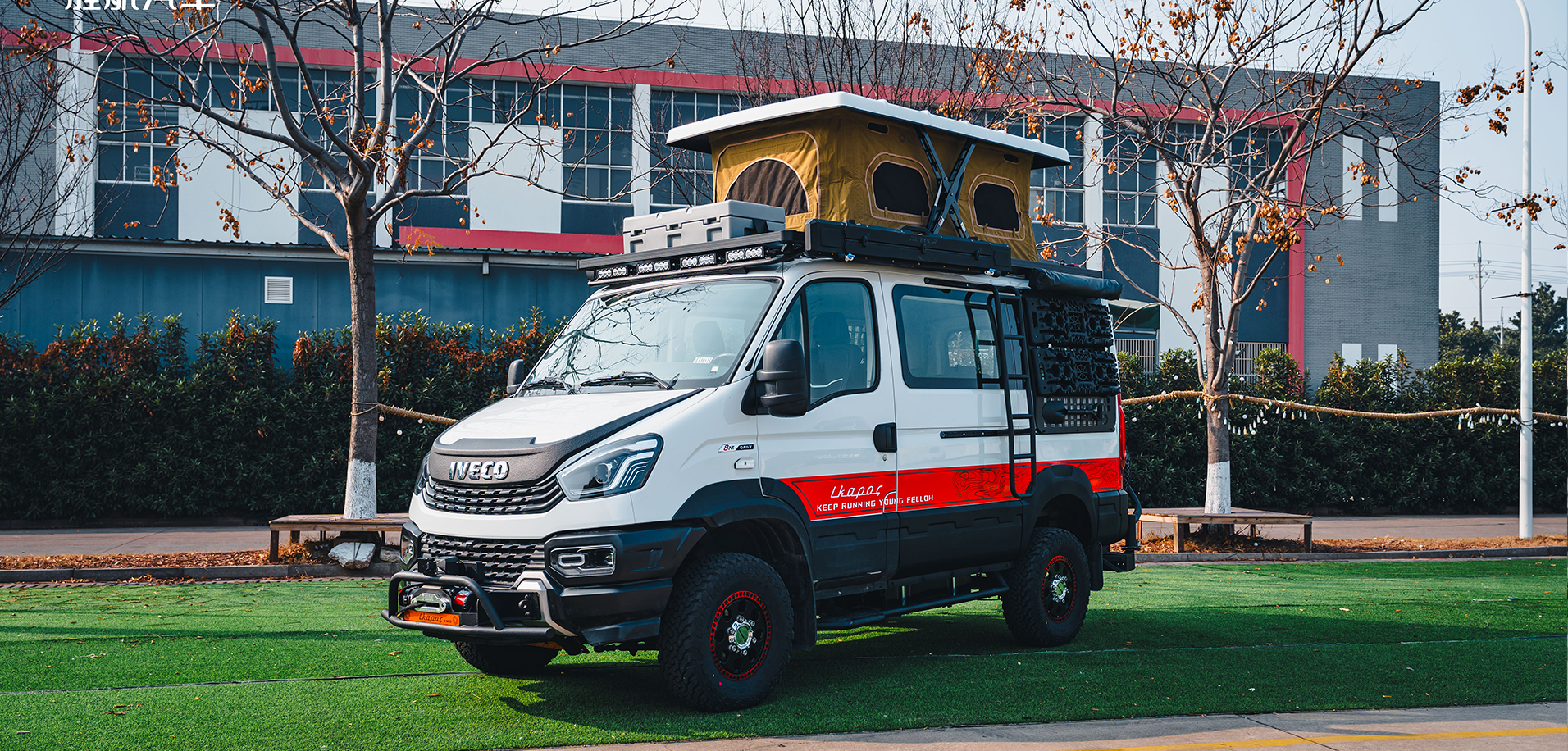

Iveco 4WD M1-30 multi-purpose camper, equipped with a powerful 4WD system and three differential locks, can easily cope with extreme road conditions, whether it is muddy swamps, steep mountains or desert Gobi, it can conquer them calmly. It provides solid protection for your outdoor adventure and starts a journey of boundless exploration.

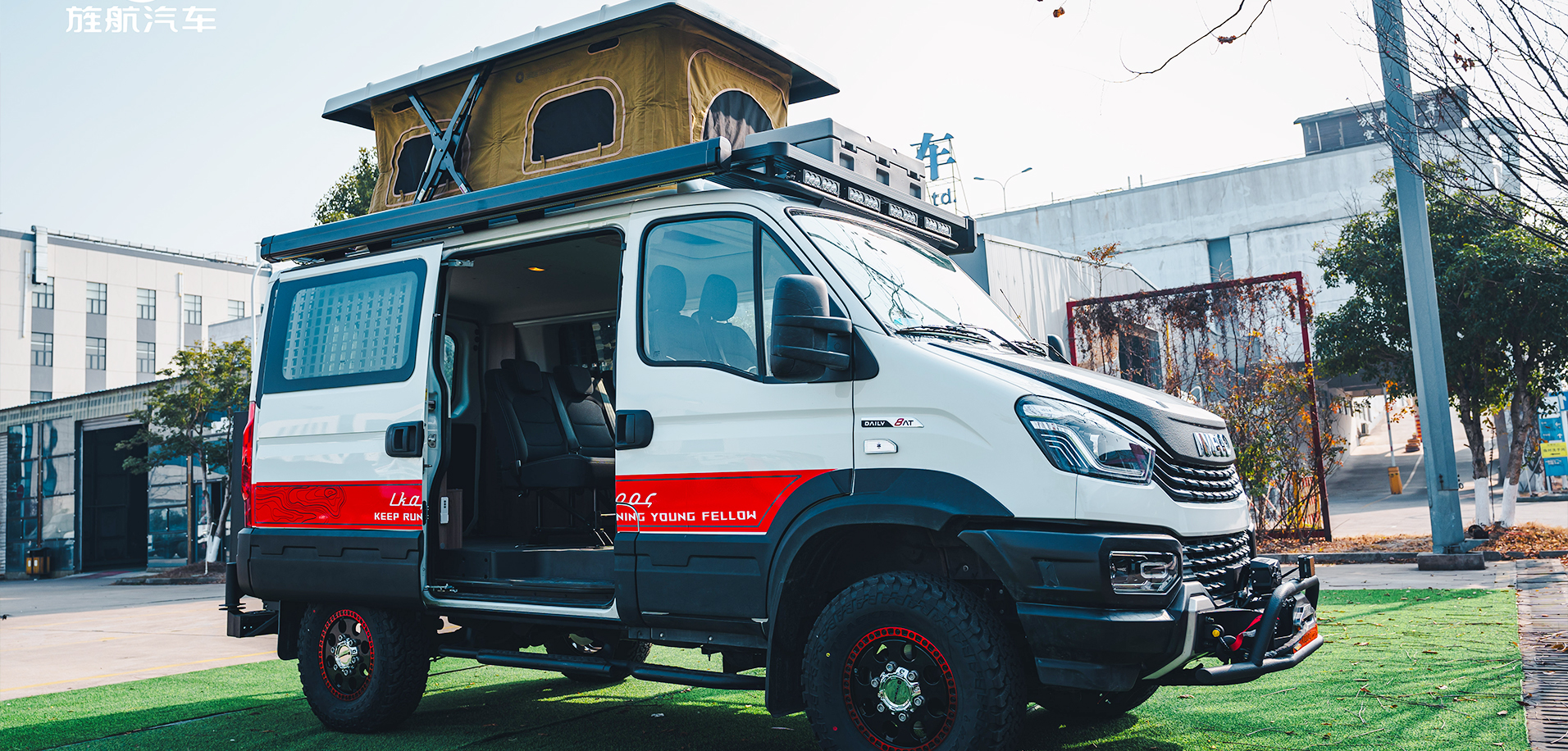

The clever use of the lifting roof design instantly expands the interior space to meet the diverse needs of family outings or group outings with friends. The interior configuration is flexible and supports free layout, allowing you to create your own off-road camping space and enjoy every moment outdoors.
|
Vehicle Model |
Iveco Eurocargo Shanhai |
category |
M1-30D short-axle low-top automatic transmission (8AT) |
|
drive |
4WD |
Maximum number of passengers |
3-6 people |
|
color |
Alpine White | ||
|
Chassis parameters |
Displacement: 3.0T |
Dimensions (length × width × height): 5600mm × 2098mm × 2686mm |
Diesel tank: 80L |
|
Front/rear axle load: 1730/1650 KG |
Curb weight: 3380 KG |
Total mass: 3800 KG | |
|
Approach angle/departure angle (fully loaded): 24/20 degrees |
Rear axle ratio: 4.556 |
Maximum speed: 160 KM/H | |
|
Basic Configuration |
Main and auxiliary airbags |
360-degree panoramic view |
ACC Adaptive Cruise Control |
|
Lane Departure Warning |
ESP Vehicle Stability |
Electronic parking brake | |
|
Integrated Forward Collision Warning (FCW) |
Blind spot monitoring system |
Steep slope descent | |
|
Multi-function steering wheel |
Entertainment System |
8KW air conditioner with rear steam | |
|
Electric heated rearview mirror |
7-inch color display instrument cluster |
Streaming media rearview mirror*1 | |
|
Driver fatigue monitoring |
Level 2 Assisted Driving |
Reversing radar + reversing image | |
|
Appearance Configuration |

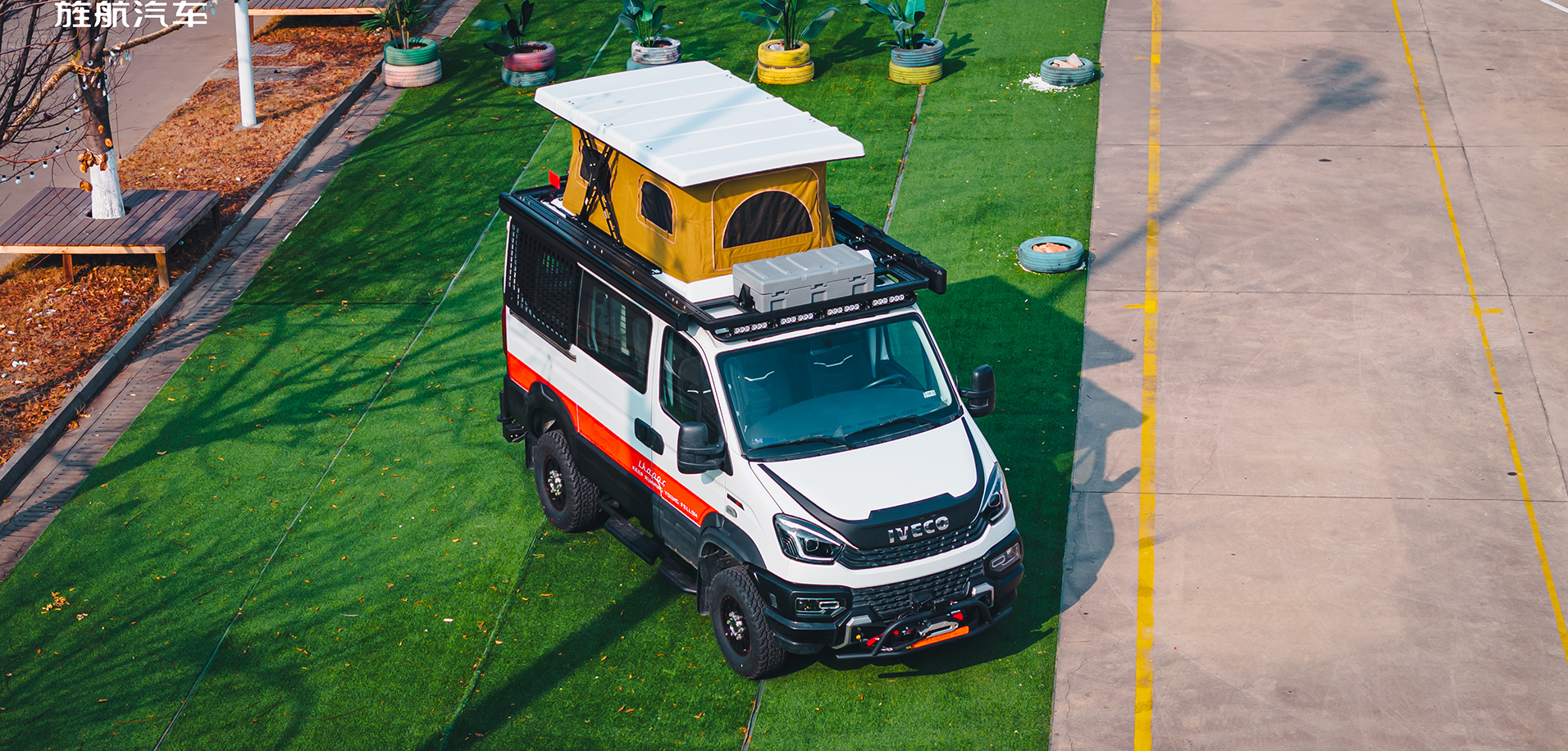

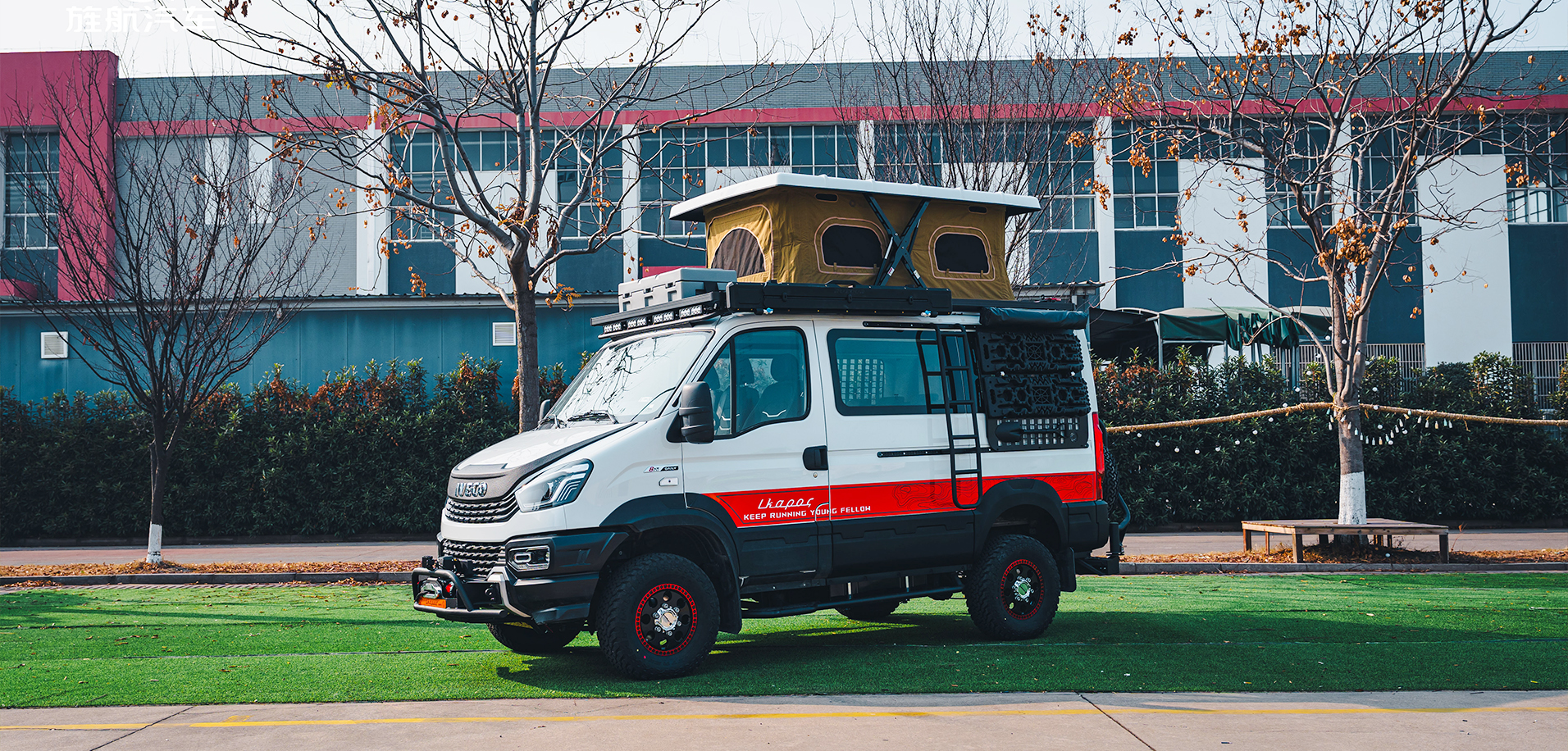

Raising the canopy |
Electric scissor lift + fixed sub-frame + tarpaulin |
Internal ladder |
|
Inner height 0.88m |
Bed size: 1.3m*1.95m | ||
|

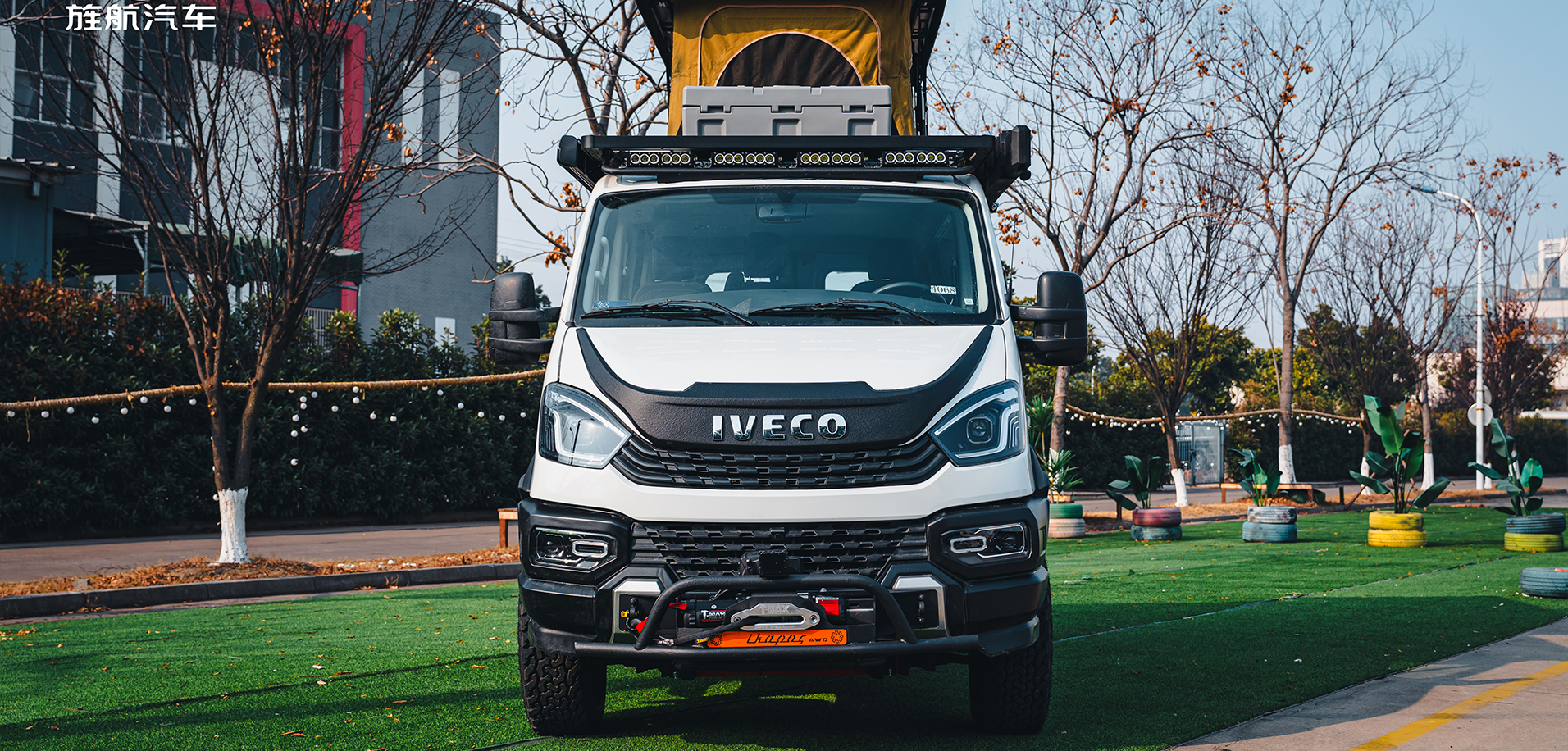

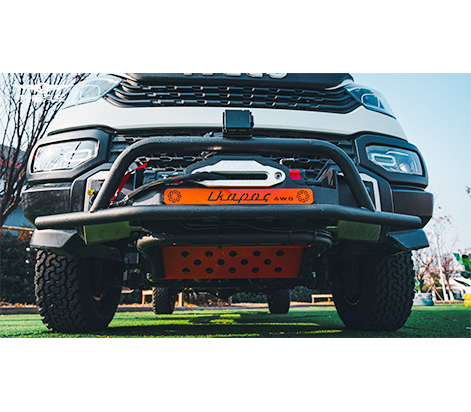

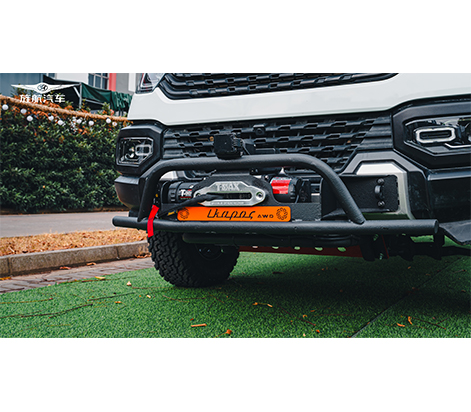

Front bull bar |
Trailer hook*2 | ||
|
Rear cattle bar |
Dual-axle rear bumper |
European 13-pin signal interface | |
|

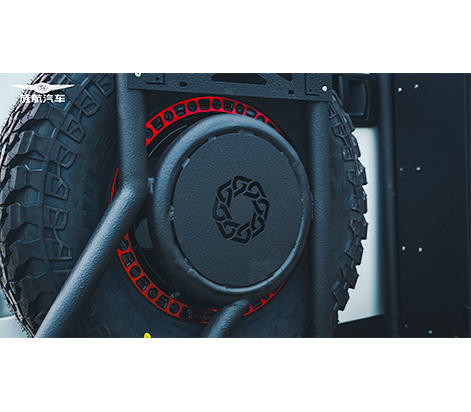

Spare tire rack |
Luggage rack | ||
|
48 inch Farmer's Top |
Related Load: 3500lb (1600kg) | ||
|
Tested Load: 9900lb (4500kg) | |||
|
Front traction winch |
T-MAX 9500 lb Fiber Rope Winch | ||
|
Rear traction winch |
T-MAX 9500 lb Fiber Rope Winch | ||
|
Roof platform expansion luggage rack |
Roof luggage box*1 (tactical box) |
Large luminous flux LED spotlight * 4 | |
|
3m awning (including light strip) |
Left and right rear side window panels |
Escape board*2 | |
|
External ladder on the left side of the vehicle |
Shower tent on left side of vehicle |
29L luggage rack side mounted water tank | |
|

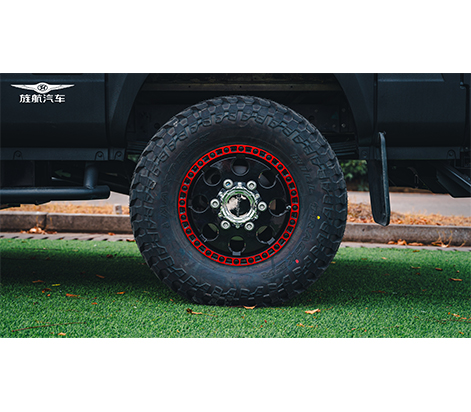

Aluminum alloy wheels 5 + AT tires 5 |
Steps on both sides | ||
|
furniture |
Interior left and right side wall furniture set |
USB power port*2 | |
|
Thetford portable toilet, PP145 set | |||
|
Optional |
Car body color changing armor paint | ||
