Take slow steps, neither hurried nor slow, enjoy the beautiful scenery, listen to music, and feel the small scenery in the big scenery. In the days to come, Jinghang will embark on the journey with you and create your own story together.

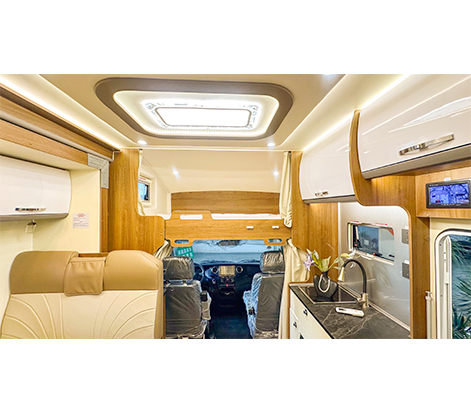

The ample interior space is spacious enough for the whole family to ride together. Take your family with you on a trip full of joy and ease.
|
Vehicle Model |
Iveco AD02 Automatic Transmission National VI-4.5T |
category |
WL-Ⅲ-2023 | |
|
layout |
2023 Future model large forehead middle upper door (side expansion) with two side windows, no forehead skylight |
Number of passengers |
6 people | |
|
color |
Front |
□White | ||
|
car |
□White |
□Gray | ||
|
Main board |
□SQ038CYM16 Matte Gray |
□Guifei Cherry M-056 | ||
|
Curved door panel |
□SQ High Gloss RL856 | |||
|
Countertop Style |
□ Biotite |
Calacatta | ||
|
leather |
□5801-5/5801-11 color matching |
□5801-7/5801-8 color matching | ||
|
Chassis parameters |
Displacement: 3.0T |
Dimensions |
5995*2390*3230 | |
|
Fuel tank: 100L |
Maximum power: 125KW |
Wheelbase: 3300mm | ||
|
Drive mode: rear drive |
Transmission: 8AT |
Fuel type: diesel | ||
|
National VI emission standards |
Tire size: 195/75R16LT |
Steel leaf spring: 3 pieces | ||
|
Navigation integrated machine (reversing image) |
Dual generator (12V, 150A) |
| ||
|
Configuration |
Basic Configuration | |||
|
Appearance |
Sandwich insulation box |
Paint-free aluminum sheet |
RV dedicated water inlet | |
|
RV special push window + hatch |
RV dedicated mains interface |
American RV door + password lock | ||
|
3.5m manual awning + light strip |
Side expansion mechanism |
Electric step | ||
|
Water tank |
Fresh water tank 220L |
Gray water tank 60L |
| |
|
Fabric |
Fabric bed curtain |
Microfiber leather booth |
| |
|

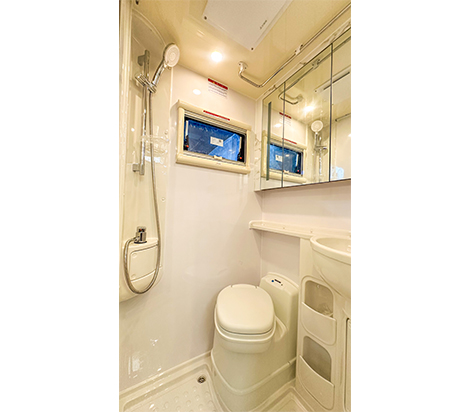

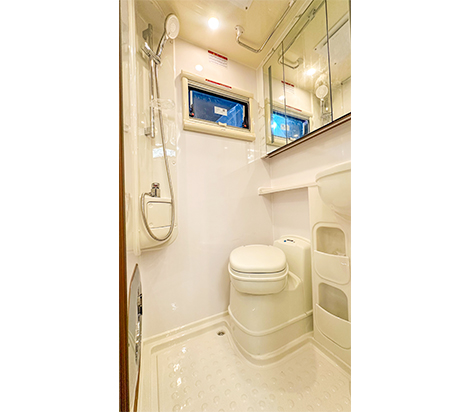

bathroom |
Blister toilet |
Side exhaust fan |
Thetford toilet | |
|
Makeup mirror |
Shower |
lighting | ||
|

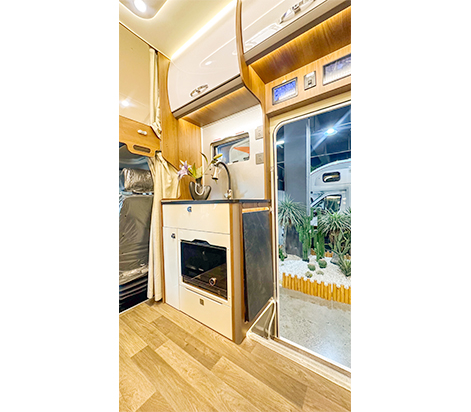

kitchen |
Stainless steel sink |
Thetford 141L Refrigerator (DC12V) |
Universal faucet | |
|
Hydropower |
Gree 1P Inverter Air Conditioner |
Touch integrated control system (7 inches) |
5KW Diesel Parking Heater | |
|
48V200AH RV Lithium Battery |
400W solar panel (including controller) |
6000W Inverter | ||
|
Imported Safeline water pump |
Water heater 25L |
Bedside reading lamp | ||
|
Rotating lifting table |
220V power socket |
USB interface | ||
|
External power cord 15 meters |
External water pipe 10 meters |
Ambient light strip | ||
|
decorate |
Anti-wood floor leather |
Luxury furniture set |
| |
|
Bed set |
Double bed |
Card seat |
Rear double bed | |
|
Optional accessories | ||||
|
□ Streaming media rearview mirror |
□Outdoor pull-out diesel stove |
□Forehead skylight | ||
|
□Manual parking legs |
□Four-way monitoring (including display screen) |
□Add lithium battery system 48V200AH | ||
|
□Add 800W solar panels |
□Three-port trailer bar |
□Daewoo washing machine | ||
|
illustrate |
Note: If the selected optional parts conflict with the basic configuration, the optional parts will prevail and cover the corresponding basic configuration without further notice. | |||
