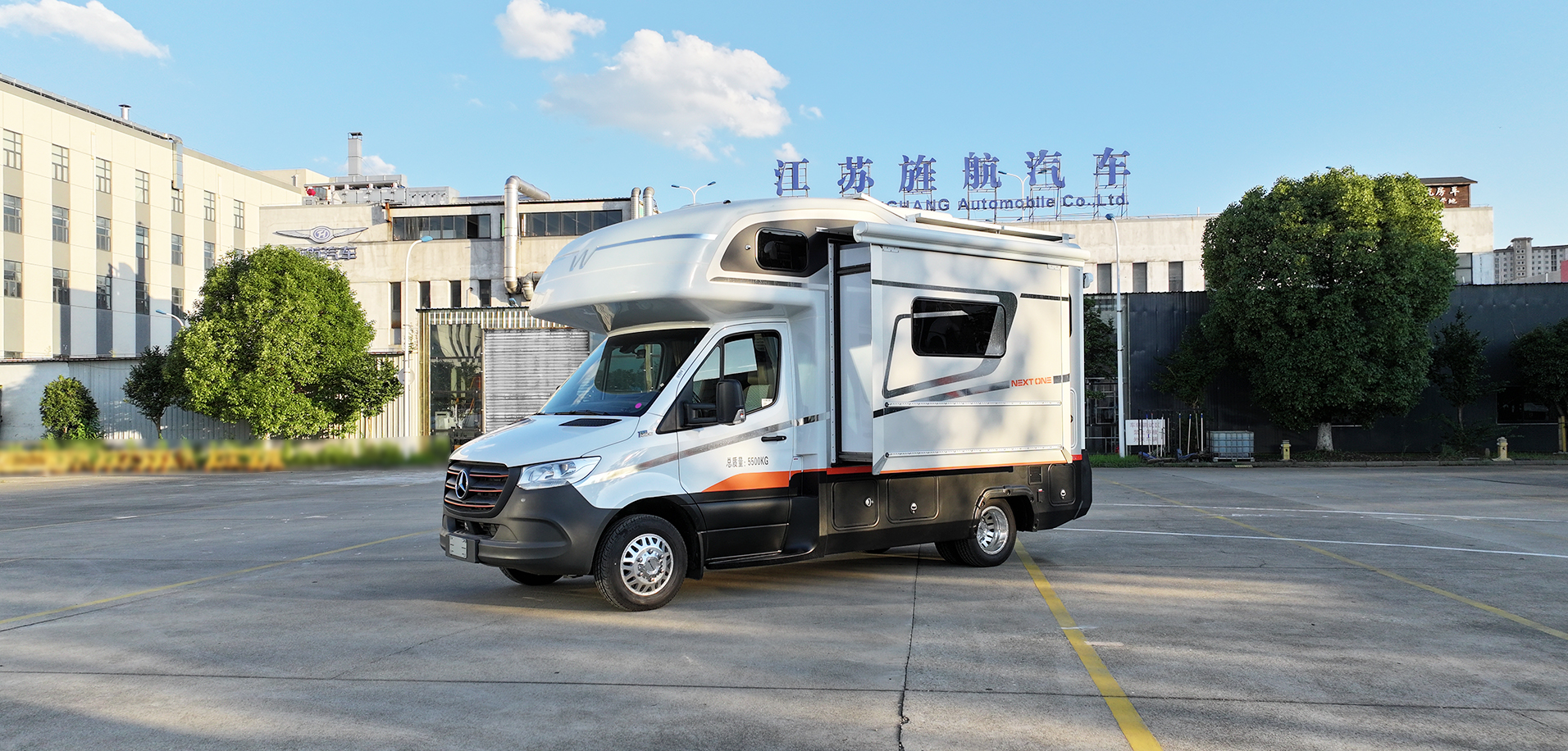

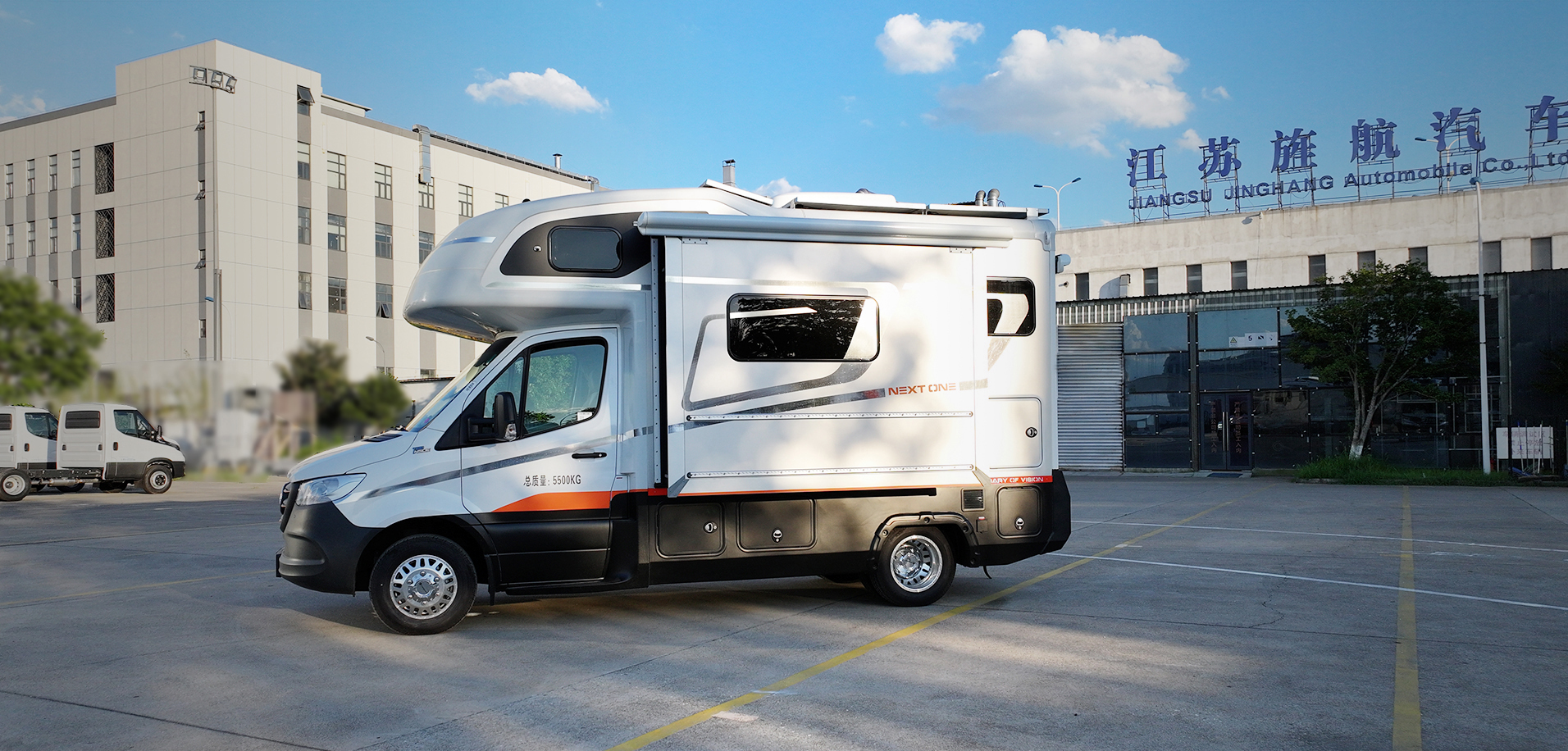

The combination of elegant design, excellent performance and intelligent technology brings unprecedented comfort and spaciousness. Whether you are traveling through a bustling city or galloping across magnificent mountains, rivers, lakes and seas, you can enjoy every moment of your journey.

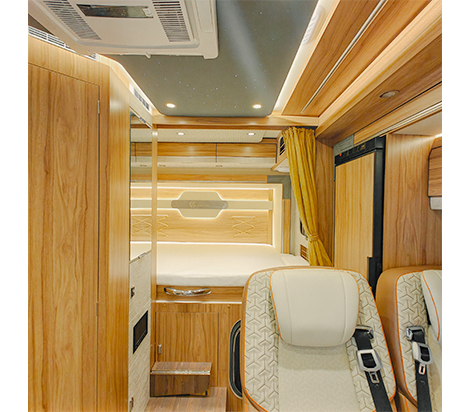

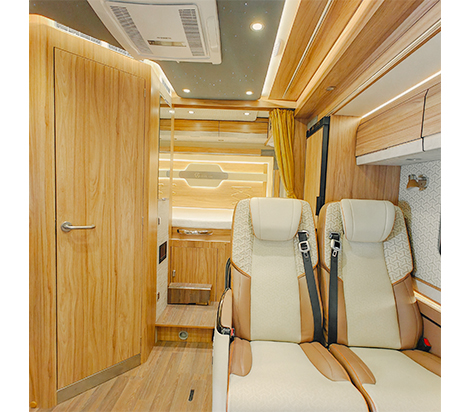

Free and open space, changeable and comfortable aviation seats, dynamic shape, rich colors, innovative materials, every detail is perfect. The interior space not only accommodates the excitement of daily life, but also carries the love of traveling far away.
|
model |
Imported Mercedes-Benz 517 Automatic Transmission National VI-5.5T |
category |
BC-590-SD Pro | |
|
layout |
2024 Horizon model with large front door (double expansion) with two side windows and front skylight |
Number of passengers |
4 people | |
|
Interior systems |
Front |
□ White | ||
|
car |
□ Silver | |||
|
Main board |
□ Light wood grain | |||
|
Color door panels |
□ Light wood grain | |||
|
leather |
□ Gray color matching | |||
|
Chassis parameters |
Driver and passenger airbags + side airbags |
Dimensions |
5998*2548*3385mm | |
|
OM654 Diesel 2.0L Inline Engine |
Widened electric heated rearview mirrors |
Wheelbase: 3665mm | ||
|
National VI emission standards |
Transmission: 8AT |
Fuel type: diesel | ||
|
Tire specifications: 215/75R16/6/1 |
12V 220A smart generator + 48V 100A second generator |
12.3 inch floating navigator | ||
|
Configuration |
Basic Configuration | |||
|
Exterior |
European style passenger door |
3. Mess Petermann Wind Sense Armless Electric Awning |
Dometic curved forehead skylight outside flat window | |
|
Dometic side expansion cabin awning |
Dometic rear expansion cabin awning |
| ||
|
Outdoor Lighting |
Heshibi manual hatch door |
Thule folding armrest | ||
|
Second level electric flip step |
Side expansion compartment |
Rear expansion compartment | ||
|
Aluminum Alloy Wheels |
Car body quick mounting system |
| ||
|
Body structure |
Bottom torsion subframe |
Double-layer paint-free aluminum plate box |
Central subframe | |
|
PVC Structural Foam Insulation Systems |
Forehead integral foam PU insulation layer |
Tow bar/ AL-KO tow hook | ||
|
Water system |
City pressure water supply |
TRUMA UV water purifier REICH grey water line |
LIELE Clean Water Pipeline | |
|
Gravity water inlet |
238-liter fresh water tank |
92 litre grey water tank | ||
|
Manual drain valve |
Whirlpool water filter kit |
External gas/water inlet | ||
|
40 mesh water line coarse filter |
Wanwei 10L exchangeable water storage tank |
LIELE double pump system | ||
|
TRUMA UV Water Purifier |
TRUMA Temperature Sensing Automatic Drain Valve |
TRUMA Activated Carbon Water Purifier | ||
|
Toilet system |
Dry and wet separation shower curtain*2 |
Thetford 263 Swivel Toilet |
Shower Curtain Set | |
|
reich bath flower wine set |
Split ABS + Acrylic Plastic Toilet |
REICH hot and cold water countertop faucet | ||
|
ABS+Acrylic Plastic Countertop Sink |
|
| ||
|
Audio and Video |
Bosch air purifier |
New Zealand Fusheng 770 Bluetooth player |
32-inch TV | |
|
Starry sky top |
New Zealand RichSound 4.1 channel sound system |
| ||
|
Furniture interior |
5D Mattress |

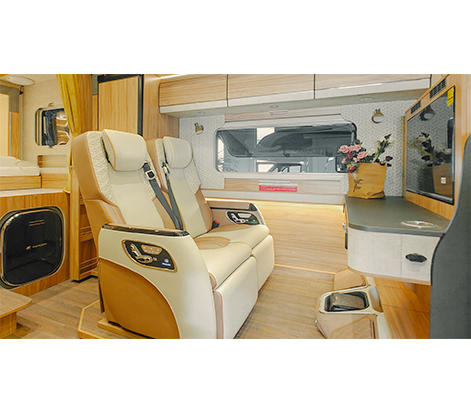

Airline business seats*2 |

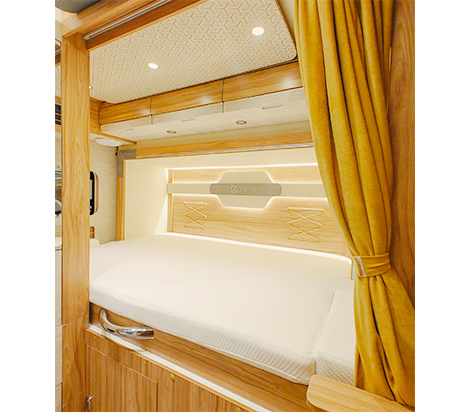

Pull-out bed*2 | |
|
Filinger PU keel |
Filinger board + LAMILUX double-layer floor |
Four-way mobile lifting table + FENIX finish | ||
|
Air conditioning exhaust system |
4KW Plateau Edition Diesel Air Heating Unit |
12KW Plateau Edition Diesel Water Heating Unit |
TRUMA air heating pipe system | |
|
Dometic 3600W ceiling mounted air conditioner |
Maxxfan 10-speed electric rainproof ventilation fan |
LAPM forced air outlet | ||
|
Kitchen system |
French steam oven |
Mobo 3KG Washer and Dryer |

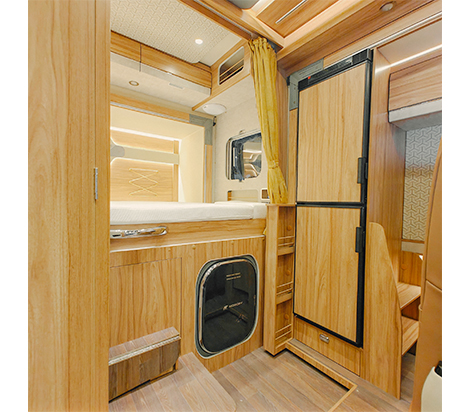

Thetford T2156 Refrigerator | |
|
Storage cabinet |
dometic sink |
Kohler hot and cold water faucet | ||
|
Mobo range hood |
TRUMA Gas Piping Systems |
| ||
|
Energy Systems |
Tobo 7-inch control screen |
Manual animal control panel |
48V Control System | |
|
Indoor AC220V output socket |
If new energy 600W solar hard panel |
External AC charging port | ||
|
12V USB charging port |
Tuobao 48V420AH battery pack 20 kWh |
Wireless control switch | ||
|
Varta 100AH high current relay battery |
48V 5000W Charger and Inverter |
External power port | ||
|
Parking safety |
4-way parking monitoring |
Car signal device + amplifier antenna |
CO/smoke/liquefied gas alarm | |
|
Fire extinguisher |
|
| ||
|
Vehicle accessories |
220V slow charging gun |
10m cable drum with heat protection |
Product Instructions | |
|
Fuse kit assembly |
Germany GARDENA 10m hose truck |
| ||
|
illustrate |
Note: If the selected optional parts conflict with the basic configuration, the optional parts will prevail and cover the corresponding basic configuration without further notice. | |||
