During the journey, we will make every moment wonderful with you. Thoughtful configuration, easy to use and more practical. Hundreds of thoughtful configurations bring all-round ultimate comfort to your journey.
The changeable and comfortable interior space is pure and meticulously polished with ingenuity. The functional details are cleverly designed and integrated into the shape, taking into account both aesthetics and functionality.
|

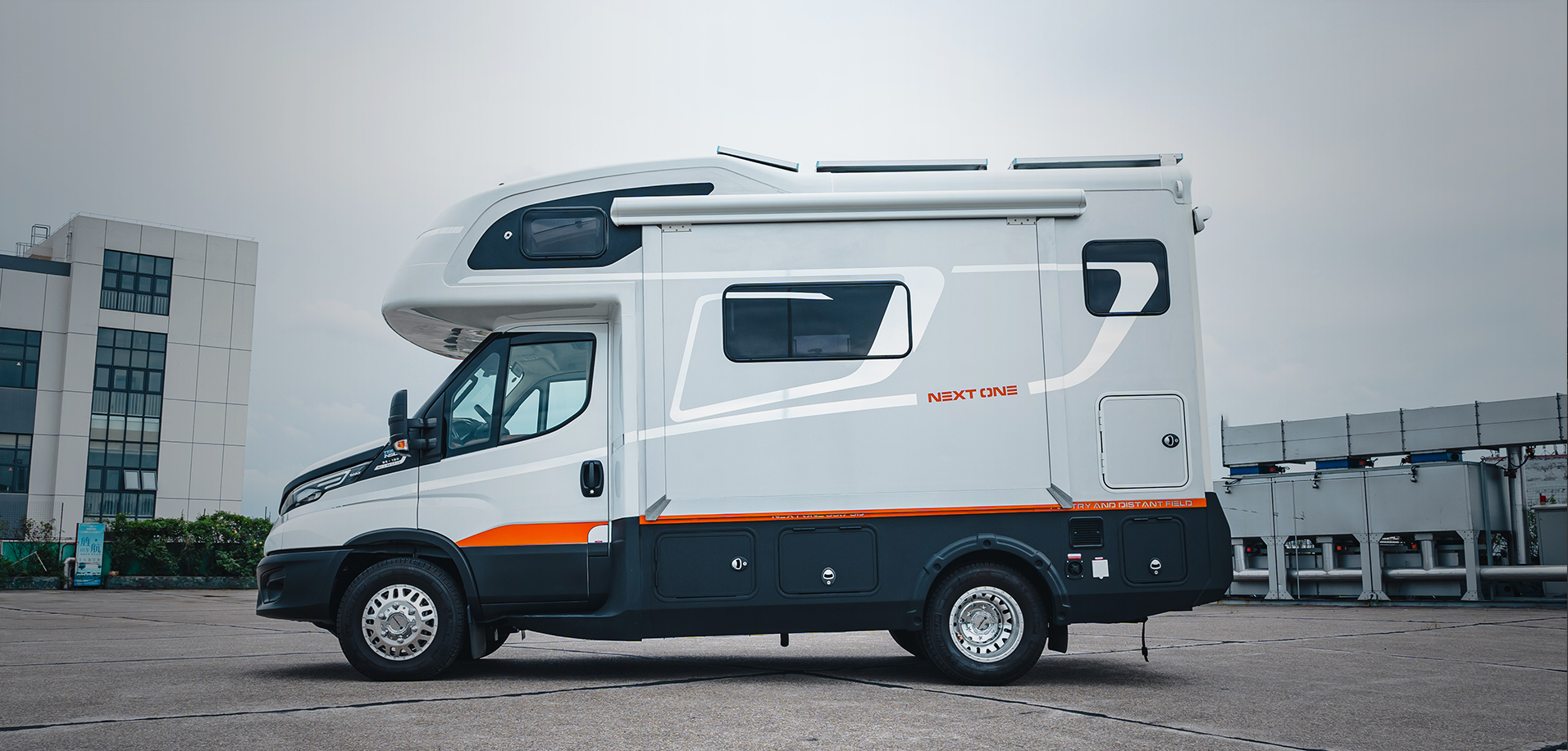

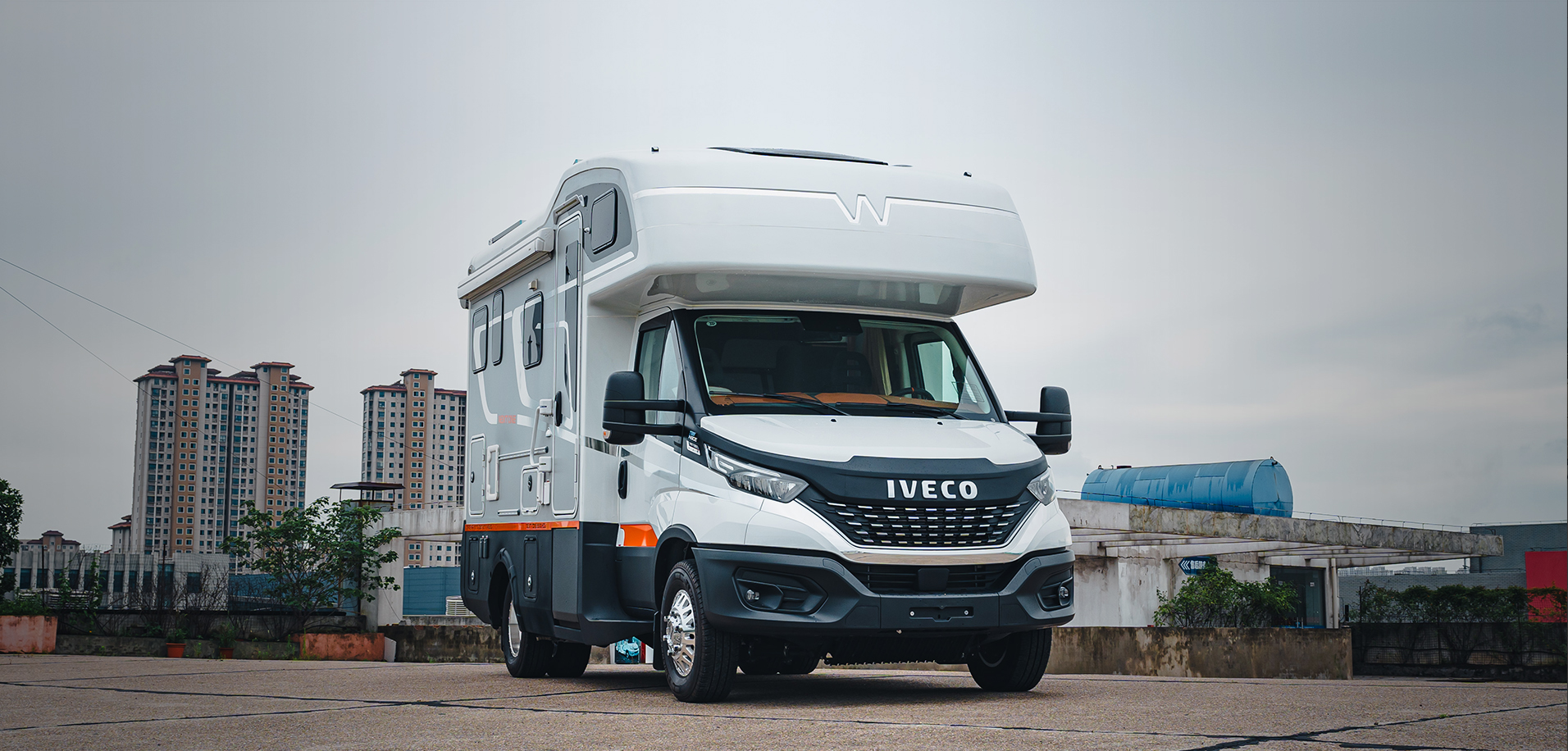

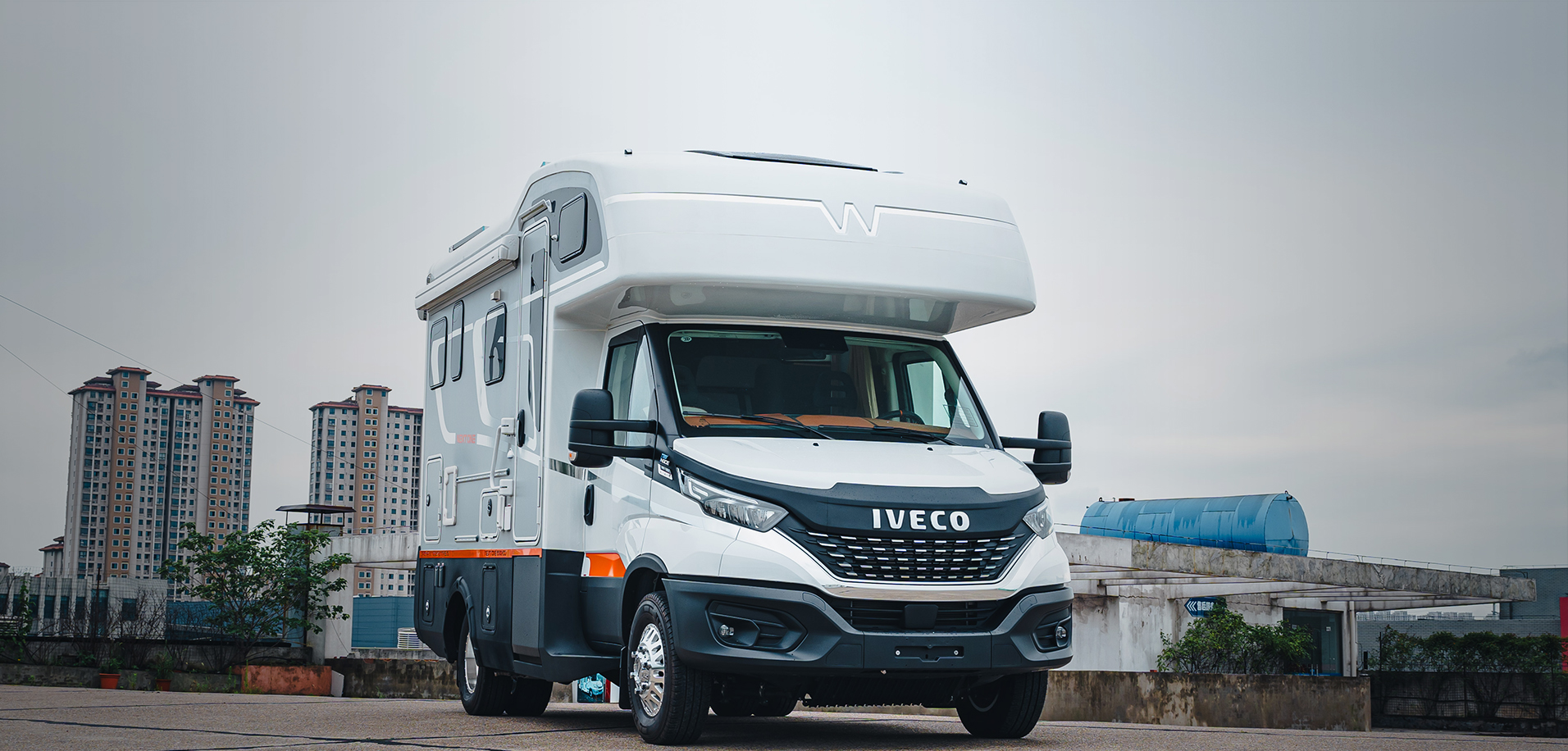

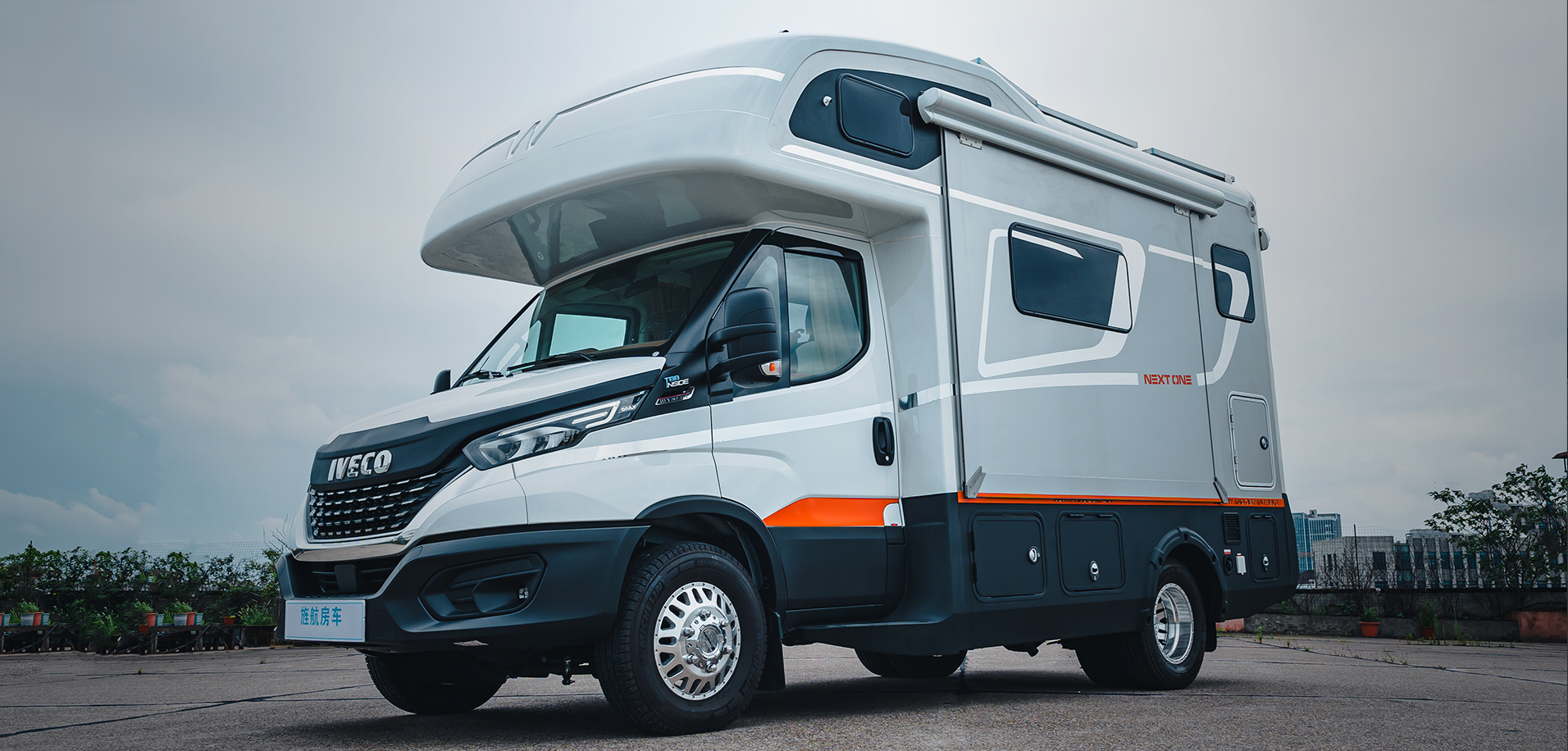

NEXT 590-SD configuration table (imported NEW Daily Iveco 6.5T chassis) | |||
|
Configuration Content |
Parameter Details | ||
|
Overall dimensions (length x width x height) (mm) |
5998×2530×3385 | ||
|
Displacement/Power/Horsepower/Torque (ml/Kw/P/N·m) |
2998/134/180/430 | ||
|
Maximum total mass (Kg) |
6500 | ||
|
Chassis weight (Kg) |
2350 | ||
|
Wheelbase |
3450 | ||
|
Maximum speed (KM/H) |
160 | ||
|
Emission standards |
National 6 b | ||
|
Transmission system |
8AT ZF HI-MATIC GEARBOX | ||
|
steering wheel |
Multi-function steering wheel, two-way adjustment | ||
|
Cruise control |
Standard | ||
|
Tire pressure monitoring |
Standard | ||
|
Steering, Braking |
ESP 9+ crosswind assist, electronic power steering, front and rear disc brakes, hydraulic brakes, lane departure warning system (LDWS) + lane keeping, adaptive cruise control, queue assist, traction control, hill descent control, automatic emergency braking system, city braking | ||
|
dynamo |
12V 180A smart generator + 48V 100A second generator | ||
|
Exterior mirrors |
Widened electric heated rearview mirrors | ||
|
Airbags |
Driver and passenger airbags + side airbags | ||
|
Cab/driver and co-driver seats |
12.3-inch floating screen navigation system, streaming media rearview mirror/driver and co-driver seats with ventilation, heating and massage functions | ||
|
Rated passenger capacity |
6 | ||
|
Fuel type/capacity |
Diesel/100L | ||
|
Maximum safe speed (Km/h) |
110 | ||
|
Minimum turning diameter/minimum ground clearance (mm) |
12138/165 | ||
|
Front axle/rear axle |
Torsion bar front suspension, anti-roll bar/air suspension, driven rear axle, anti-roll bar, speed ratio 4.556, no differential lock | ||
|
Wheels |
Aluminum Alloy | ||
|
Tire size/number/spare tire |
225/75R16/6/1 | ||
|
Trailer module |
British Lock Trailer Wiring Harness Module Assembly | ||
|
Standard Configuration | |||
|
Exterior |
Heshibi electric passenger door |
Body structure |
Bottom torsion subframe |
|
2.6m Petermann wind-sensing armless electric awning |
Central spine subframe | ||
|
Dometic curved forehead skylight |
Double-layer paint-free aluminum plate box | ||
|
Dometic side expansion cabin awning |
PET structural foam insulation system | ||
|
Dometic rear expansion cabin awning |
Forehead integral foam PU insulation layer | ||
|
Heshi wall exterior flat window |
Tow bar/AL-KO tow hook | ||
|
Firma Rainproof Door Light + Outdoor Lighting |

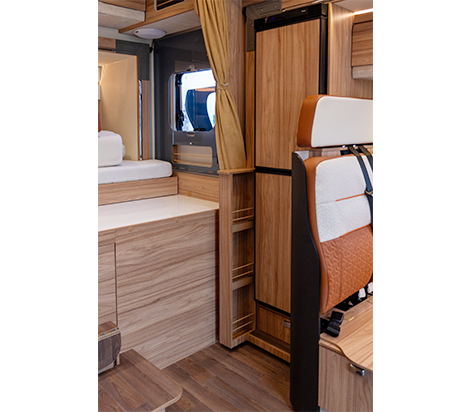

Furniture interior |
Memory foam mattress/memory foam seat cushion | |
|
Heshibi manual hatch door |
Camping storage box × 2 | ||
|
Thule folding armrest |

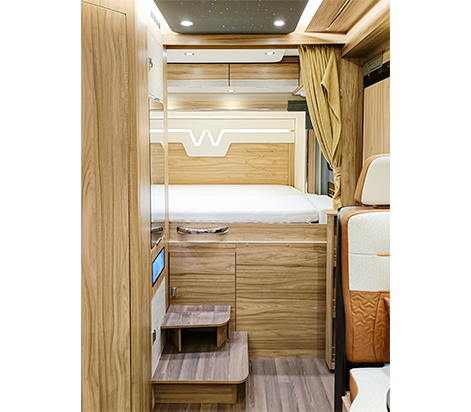

Pull-out bed × 2 | ||
|
Henghong 4-post electric leveling system |
Filinger board + LAMILUX double-layer floor | ||
|

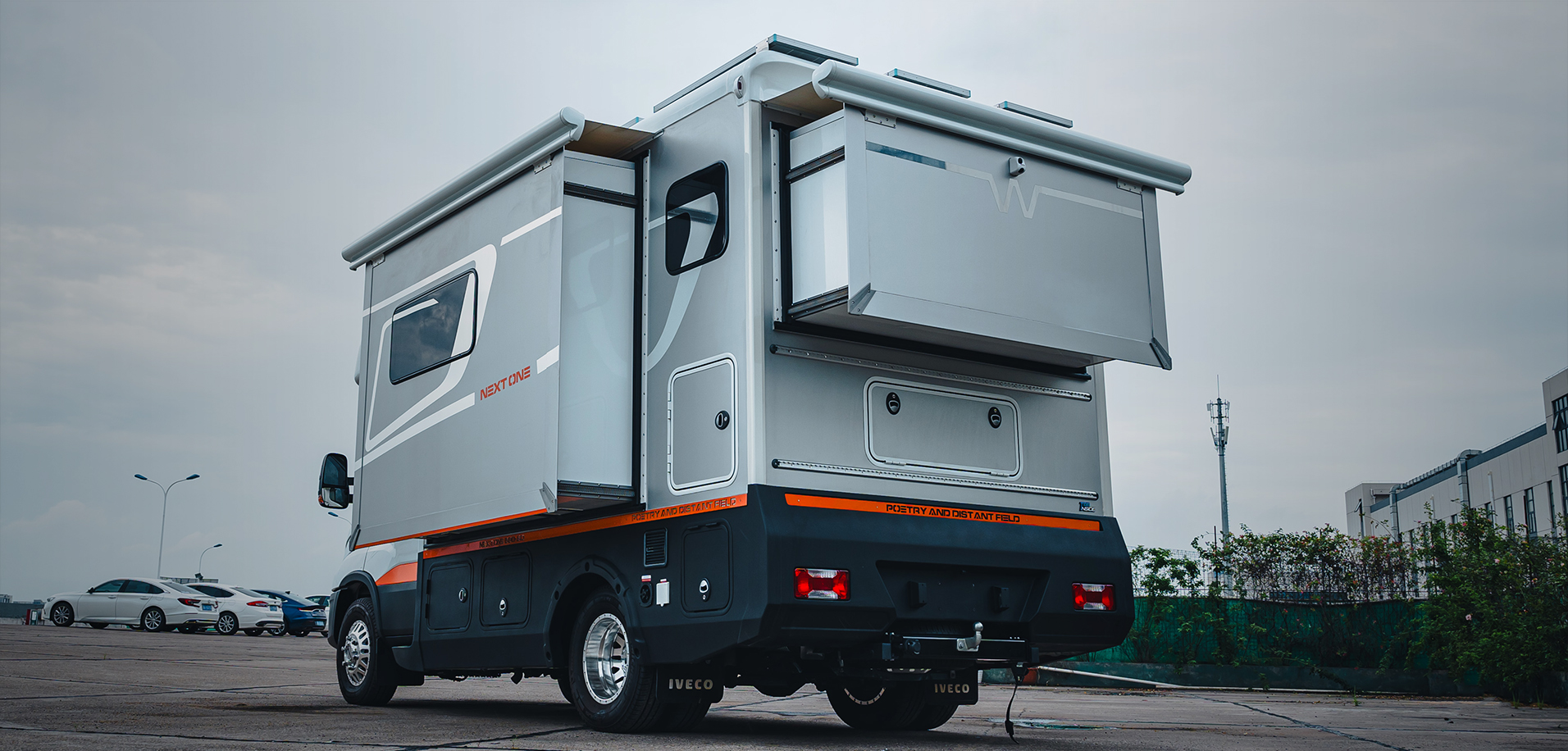

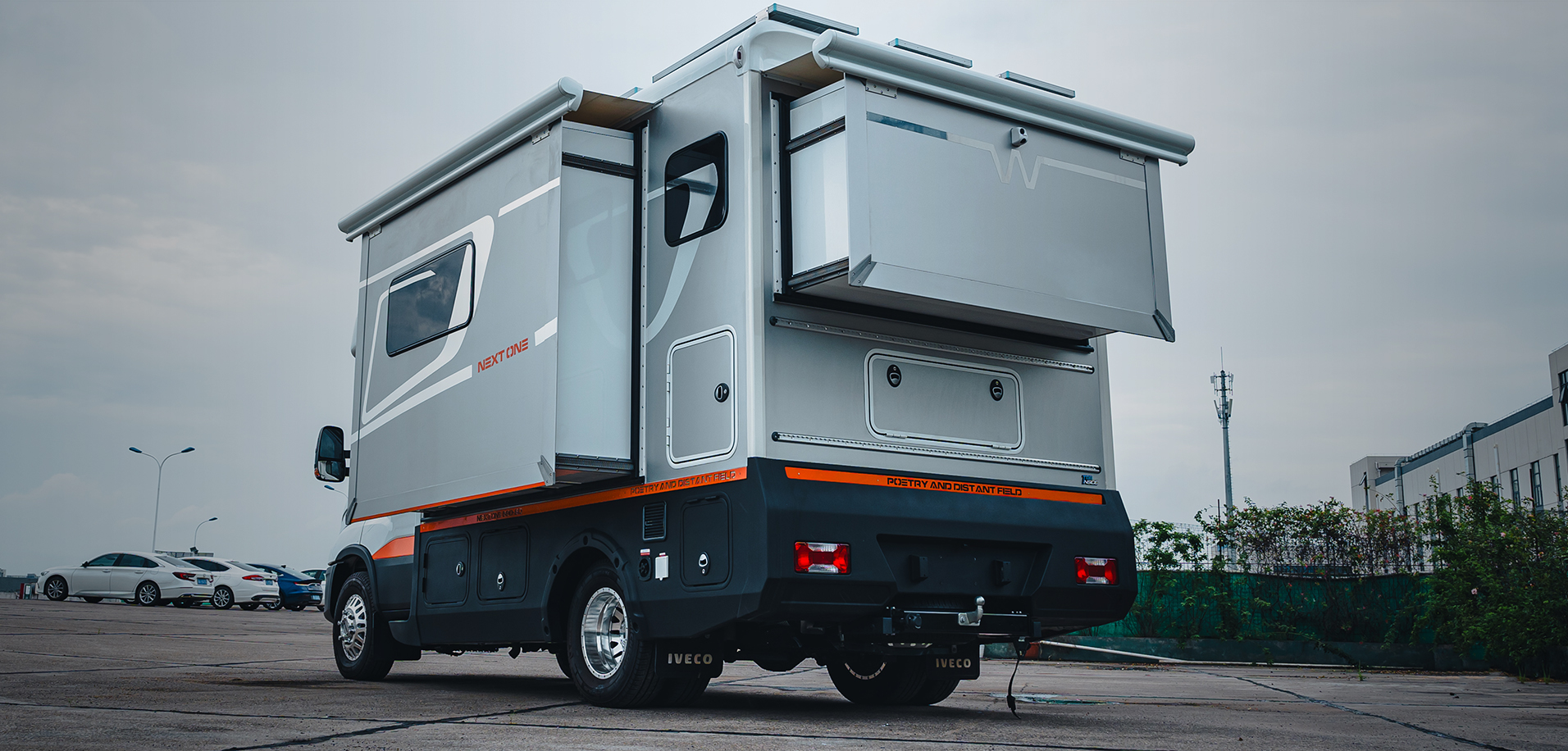

Side expansion compartment |
ILSE four-way mobile lifting table + FENIX veneer | ||
|
Rear expansion compartment |
Filinger PU keel | ||
|
PROJECT 2000 three-level electric flip step |
Cabinet Storage Box | ||
|
Car body quick mounting system |
Kitchen system |
Mobo 3KG Washer and Dryer | |
|
Aluminum Alloy Wheels |
Siemens dishwasher | ||
|
Air conditioning exhaust system |
Eberspächer 12KW Plateau Edition Diesel Water Heating Unit |
Shuaishi steam and bake machine | |
|
Eberspächer 4KW Plateau Edition Diesel Air Heating Unit |
Thetford T2156 Refrigerator | ||
|
TRUMA air heating pipe system |
Storage cabinet | ||
|
Maxxfan 10-speed electric rainproof ventilation fan |
dometic sink | ||
|
LAPM forced air outlet |
Kohler hot and cold water faucet | ||
|
Dometic roof-mounted car air conditioner |
Mobo range hood | ||
|
Energy Systems |
Tobo 7-inch control screen |
TRUMA Gas Piping Systems | |
|
Manual animal control panel |
Häfele fast hanging system | ||
|
48V Control System |
Audio and video entertainment system |
New Zealand Fusheng 770 Bluetooth player | |
|
If new energy 600W solar hard panel |
60 inch electric projection screen | ||
|
Toba 48V 300AH battery pack (14.4 kWh) |
XGIMI H3 Projector | ||
|
External AC charging port |
New Zealand RichSound 4.1 channel sound system | ||
|
Indoor AC220V output socket |
Starry sky top | ||
|
12V USB charging port |
Water system |
City pressure water supply | |
|
Wireless control switch |
LIELE Clean Water Pipeline | ||
|
Varta 100AH high current relay battery |
Gravity water inlet | ||
|
48V 5000W Charger and Inverter |
238L in-vehicle fresh water tank | ||
|
External power port |
92L grey water tank | ||
|
Smartphone charging module |
Manual drain valve | ||
|

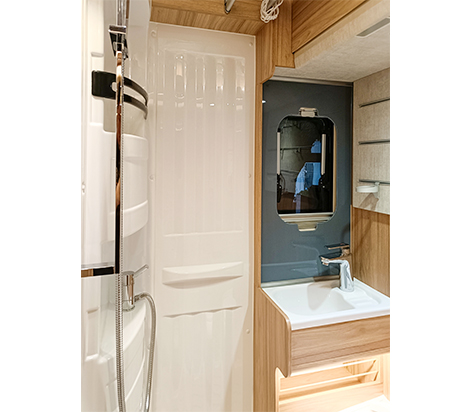

Toilet system |
Dry and wet separation shower curtain × 2 |
External gas/water inlet | |
|
Whirlpool water filter kit | |||
|
Thetford horizontal toilet |
40 mesh water line coarse filter | ||
|
Shower Curtain Set |
Wanwei 10L exchangeable water storage tank | ||
|
Split ABS + Acrylic Plastic Toilet |
LIELE double water pump system | ||
|
REICH hot and cold water countertop faucet |
REICH Grey Water Pipeline | ||
|
ABS + Acrylic Plastic Countertop Sink |
Vehicle accessories |
TRUMA temperature-sensitive automatic drain valve | |
|
reich shower set | |||
|
Parking safety |
4-way parking monitoring |
Germany GARDENA 10m hose truck | |
|
220V slow charging gun | |||
|
Car signal transmitter + amplifier antenna |
10m heat protected cable reel | ||
|
CO / Smoke / LPG Alarm |
Product Instructions | ||
|
Fire extinguisher |
Fuse Kit Set | ||
