During the journey, we will make every moment wonderful with you. Thoughtful configuration, easy to use and more practical. Hundreds of thoughtful configurations bring all-round ultimate comfort to your journey.
The changeable and comfortable interior space is pure and meticulously polished with ingenuity. The functional details are cleverly designed and integrated into the shape, taking into account both aesthetics and functionality.

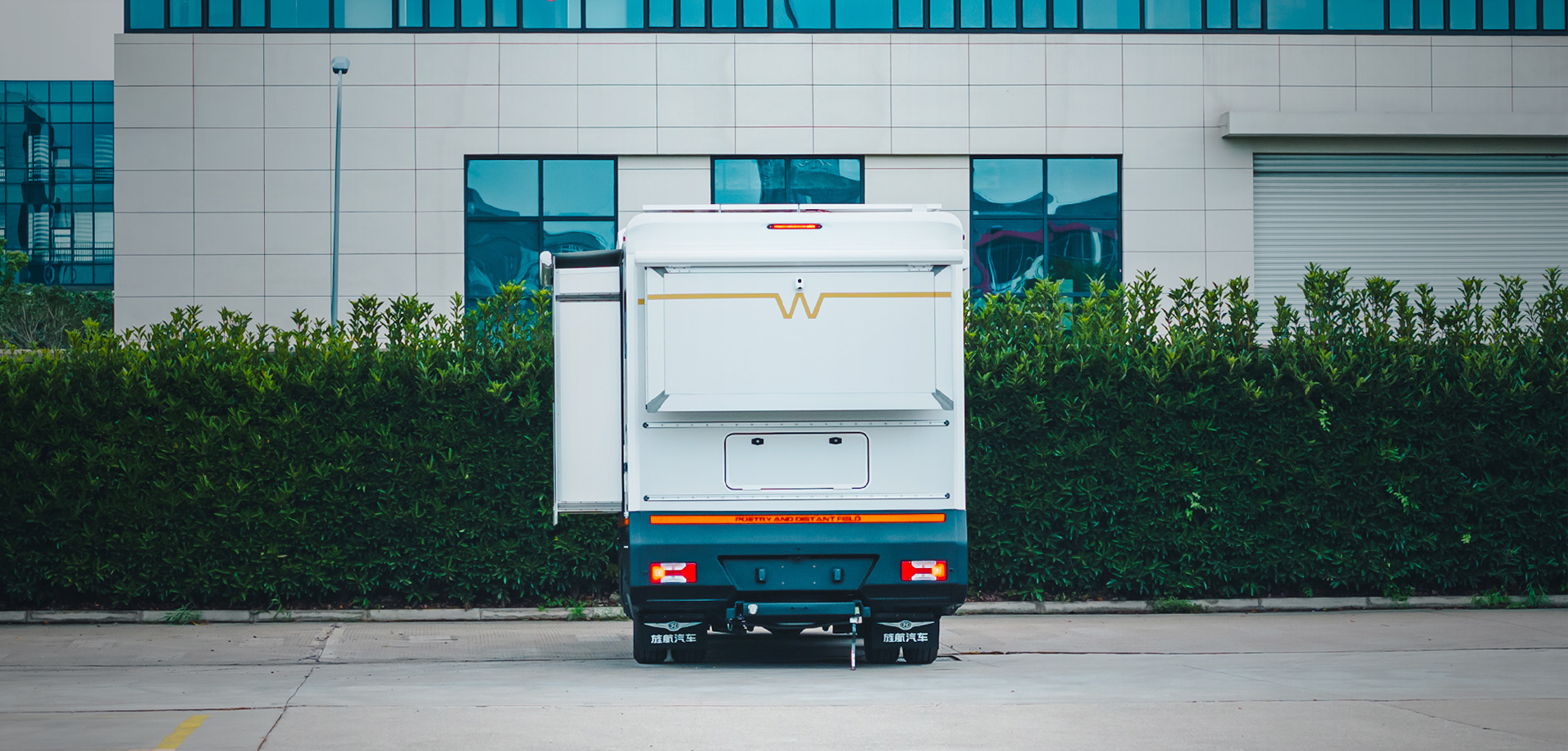

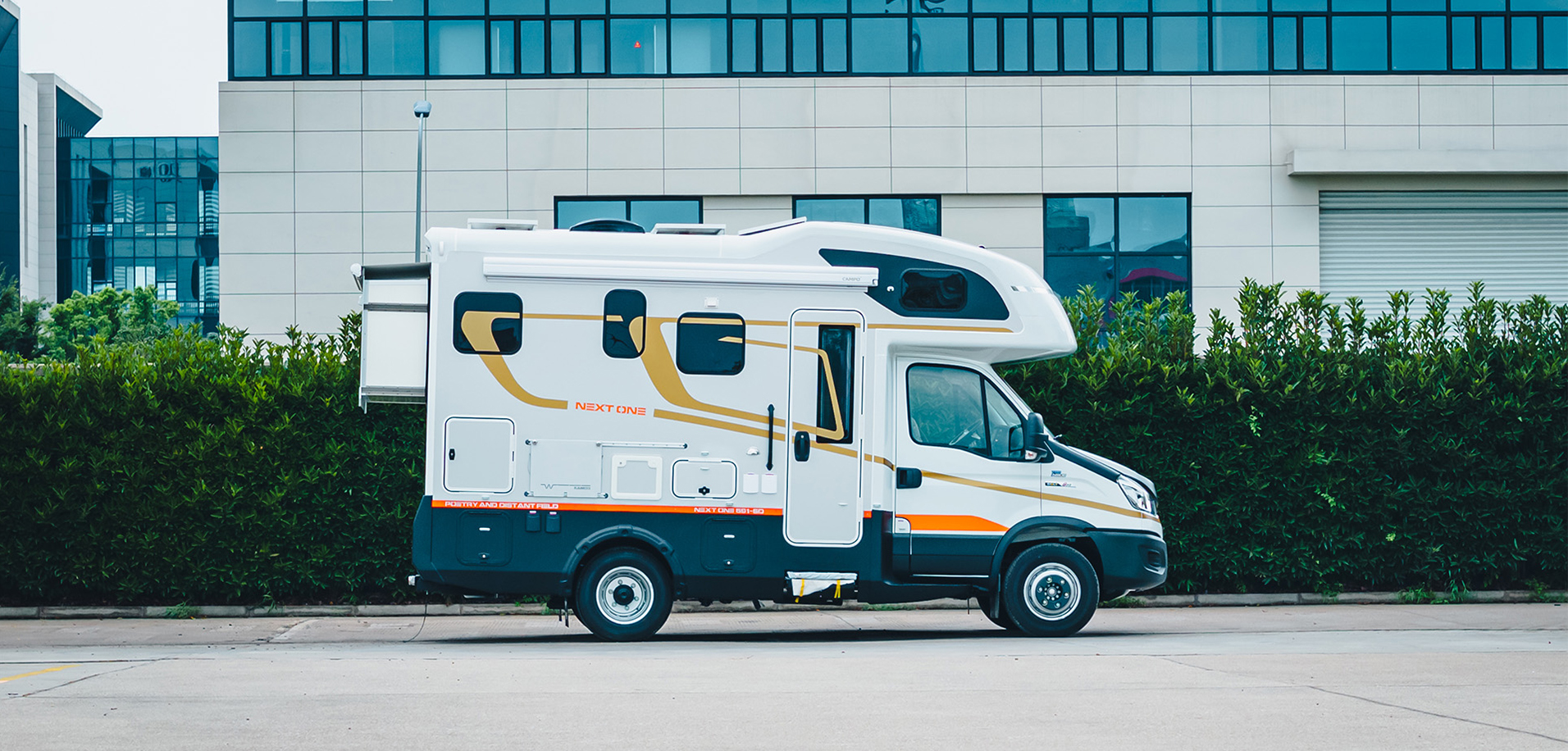

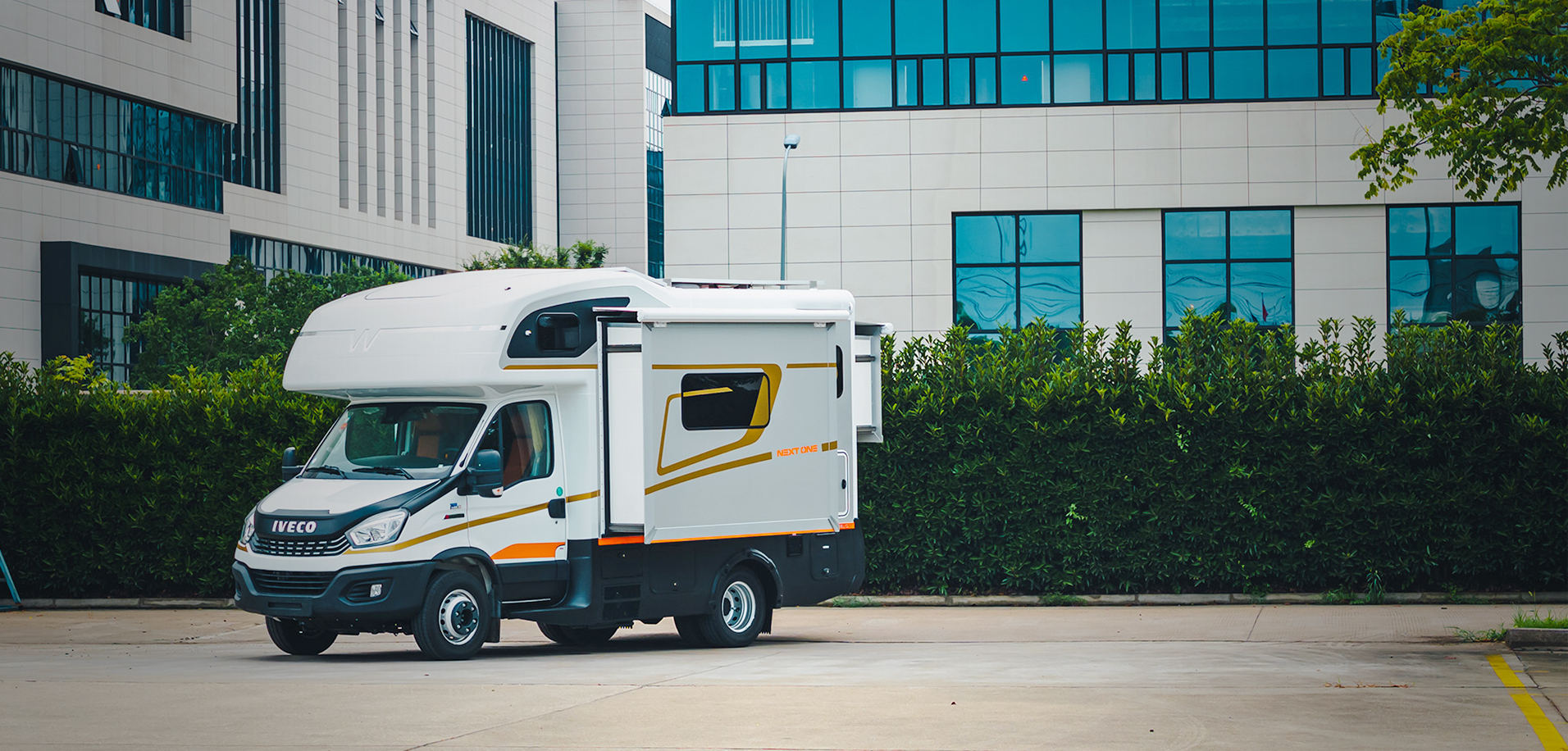

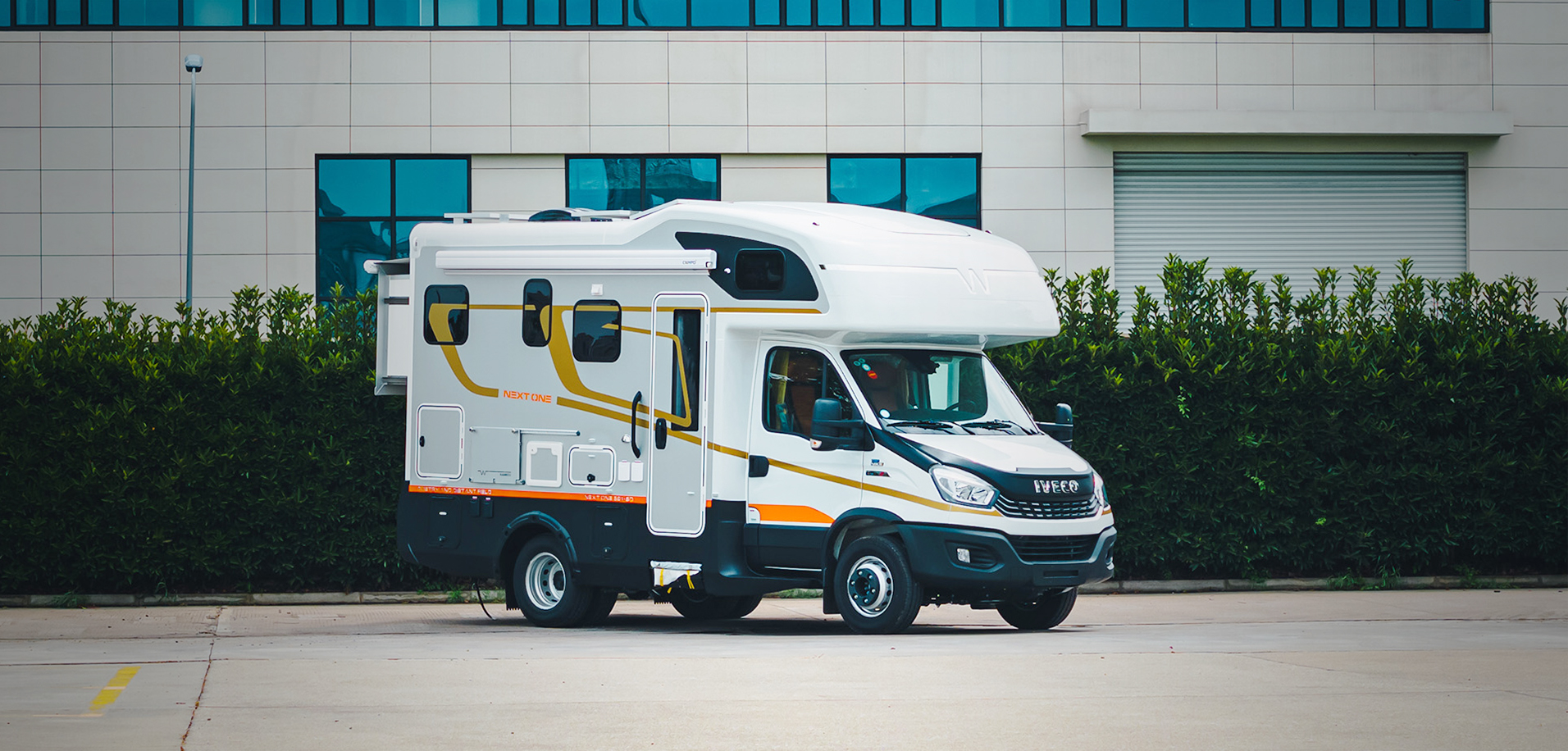

| 591-SD configuration table (domestic Iveco 6.5T chassis) | |||
| Overall dimensions (length x width x height)（mm） | 5980×2520×3235 | ||
| Displacement/Power/Horsepower/Torque (ml/Kw/P/N·m) | 2998/123/169/400 | ||
| Maximum total mass (Kg) | 6500 | ||
| Curb weight (full of water + full of oil + on-board tools) (Kg) | 4870 | ||
| Chassis weight (Kg) | 2350 | ||
| Wheelbase | 3300 | ||
| Maximum speed (KM/H) | 120 | ||
| Emission standards | National 6 b | ||
| Transmission system | 8AT | ||
| steering wheel | Multi-function steering wheel, up and down adjustment | ||
| Cruise control | Standard | ||
| Tire pressure monitoring | Standard | ||
| Steering, Braking | Wave pressure power steering, front and rear disc brakes, hydraulic brakes, lane departure warning system (LDWS), mechanical handbrake, ESP | ||
| dynamo | 12V 150A first generator + Tuobao 48V 100A second generator | ||
| Exterior mirrors | Widened electric heated rearview mirrors | ||
| Airbags | Driver and passenger airbags + side airbags | ||
| Cab/driver and co-driver seats | Navigation, streaming media rearview mirror/driver and co-driver seats leather-covered/instrument panel, side doors leather-covered | ||
| Rated passenger capacity | 6 | ||
| Fuel type/capacity | Diesel/100L | ||
| Maximum safe speed (Km/h) | 120 | ||
| Minimum turning diameter/minimum ground clearance (mm) | 12138/165 | ||
| Front axle/rear axle | Torsion bar front suspension, anti-roll bar/air suspension, driven rear axle, anti-roll bar, no differential lock | ||
| Wheels | Steel wheels | ||
| Tire size/number/spare tire | 225/75R16LT/6/1 | ||
| Standard Configuration | |||
| Exterior | Dometic imported passenger door | Body structure | Bottom torsion subframe |
| 3m CAMPO manual awning | Double-layer paint-free aluminum plate box | ||
| San Qiao hatch | Double-layer paint-free aluminum plate box | ||
| Side expansion compartment with covered awning | PET structural foam insulation system | ||
| Rear expansion compartment with covered awning | Forehead integral foam PU insulation layer | ||
| Sanqiao sliding window | PU keel | ||
| ITC boarding handrail | Furniture interior | Latex mattress/memory foam seat cushion | |
| Thule two-stage electric step | Four-position mobile lifting table | ||

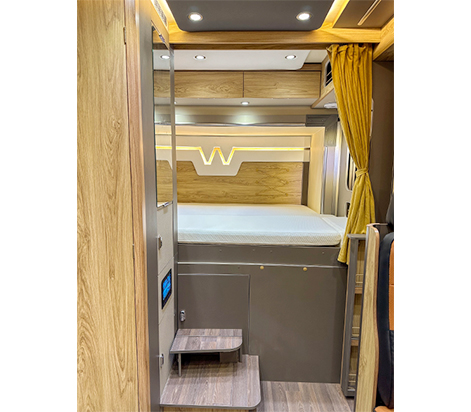

| Rear expansion compartment | Pull-out bed × 2 | ||
| Side expansion compartment | LAMILUX double-layer floor | ||
| Air conditioning exhaust system | KME3000W Car Split Air Conditioner | Four-position mobile lifting table | |
| Sanqiao 10-speed electric rainproof ventilation fan | Full car furniture | ||
| TRUMA air heating pipe system | |||

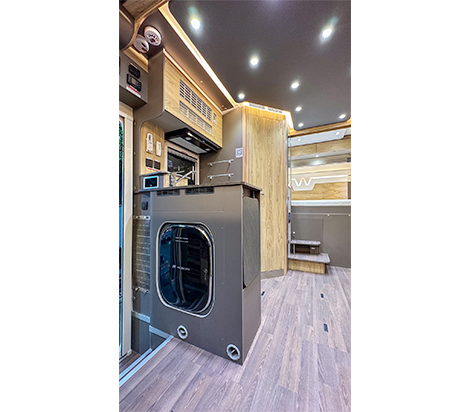

| Humphreys 12KW plateau diesel water heating unit | Kitchen system | Mobo 3KG Washer and Dryer | |
| Humphreys 4KW plateau diesel air heater unit | Häfele fast hanging system | ||
| Energy Systems | Tuobao 7-inch control screen | Shuaishi steam and bake machine | |
| Manual animal control panel | Thetford T2156 Refrigerator | ||
| 48V control system | French steam oven | ||
| 600W solar panel | Mobo range hood | ||
| Tuobao 48V200AH battery pack (10 kWh) | dometic sink | ||
| External AC charging door | Kohler hot and cold water faucet | ||
| Indoor AC220V output socket | Audio and video entertainment system | New Zealand Fusheng 210 Bluetooth player host | |
| 12V USB charging port | New Zealand Rich Sound 4.1 channel sound system | ||
| Wireless control switch | Water system | TRUMA temperature-sensitive automatic drain valve | |
| 48V5000W charging and inverter integrated machine | LIELE clean water pipeline | ||
| External power switch | Gravity water inlet | ||

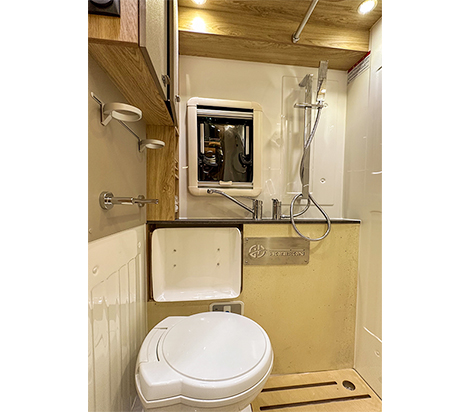

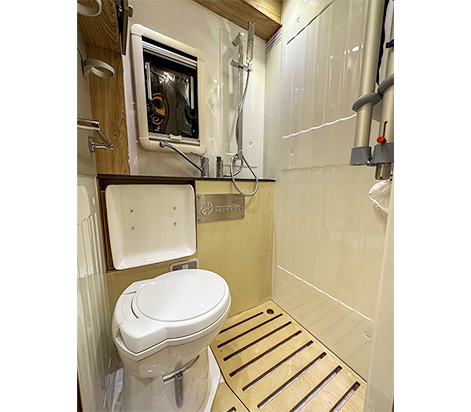

| Toilet system | Dry and wet separation shower curtain × 2 | 238L In-vehicle fresh water tank | |
| Thetford horizontal toilet | 92L Grey Water Tank | ||
| Shower Curtain Set | Manual drain valve | ||
| Split ABS + Acrylic Plastic Toilet | External water outlet | ||
| REICH hot and cold water countertop faucet | Whirlpool water filter kit | ||
| ABS + Acrylic Plastic Countertop Sink | 40 mesh water line coarse filter | ||
| reich shower set | Wanwei 10L exchangeable water storage tank | ||
| Smartphone charging module | LIELE double water pump system | ||
| Parking safety | 4-way parking monitoring | REICH Grey Water Pipeline | |
| Vehicle accessories | 10m heat protected cable reel | ||
| Fire extinguisher | 10m water hose | ||
| CO / Smoke / LPG Alarms | Fuse Kit Set | ||
| Replacement options | Four-post electric leveling legs | Product Instructions | |
| Sponge mattress | 15000 | ||
| RA770 player | 10000 | ||
| 2 pairs of 6.5-inch speakers | 4000 | ||
| Amplifier + Subwoofer | 6000 | ||
| UV + activated carbon water purification | 15000 | ||
| Car signal transmitter + amplifier antenna | 4000 | ||
| Full car Filinger plate | 30000 | ||
| Dometic sunroof | 12000 | ||
| 600W if new energy solar panel | 2500 | ||
| 3M Electric Awning | 4500 | ||
| 48V200AH lithium iron phosphate battery | 19000 | ||
| Starry sky top | 2500 | ||
| KONI shock absorption | 7000 | ||
| Backpack*2 | 3000 | ||
| Rear bike rack | 17000 | ||
