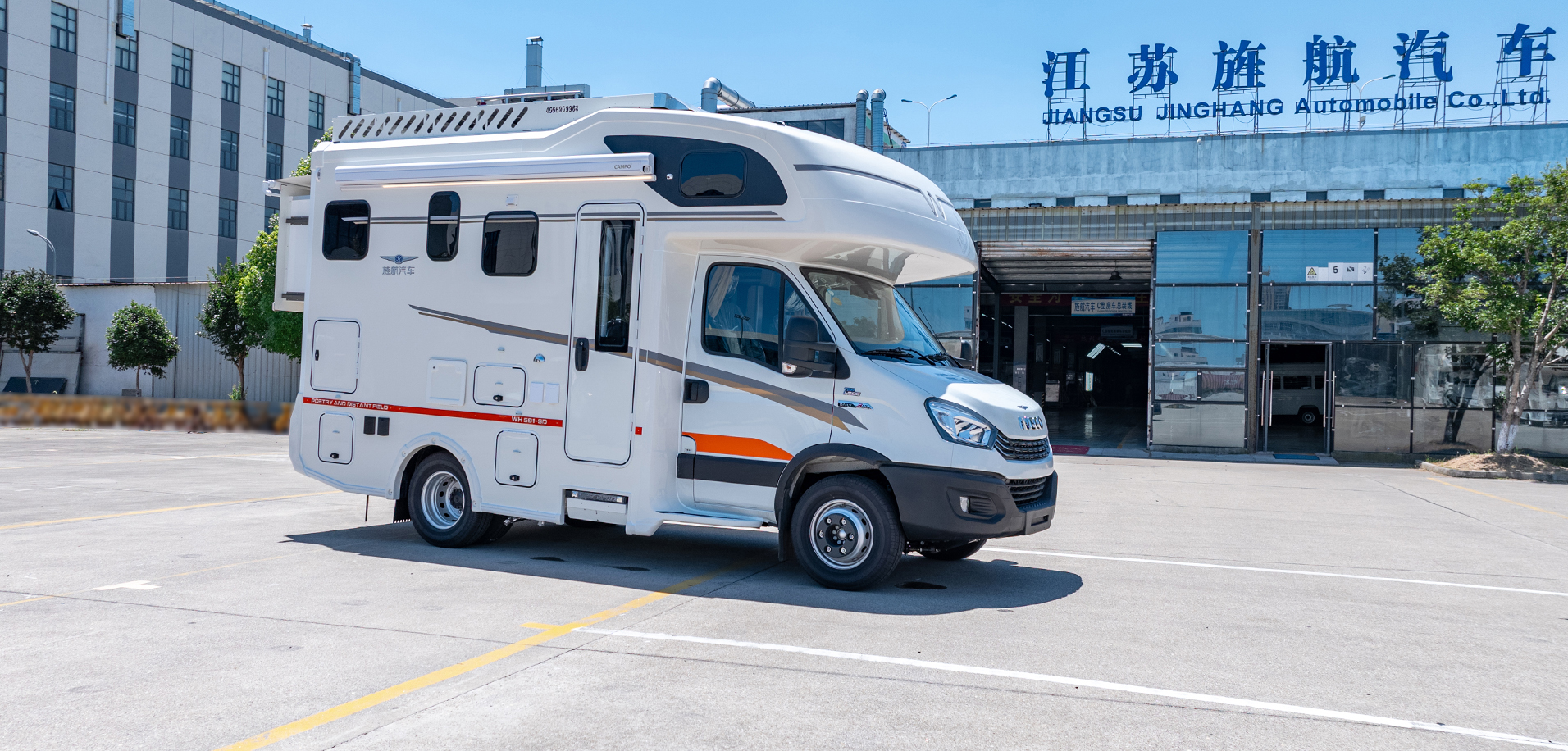

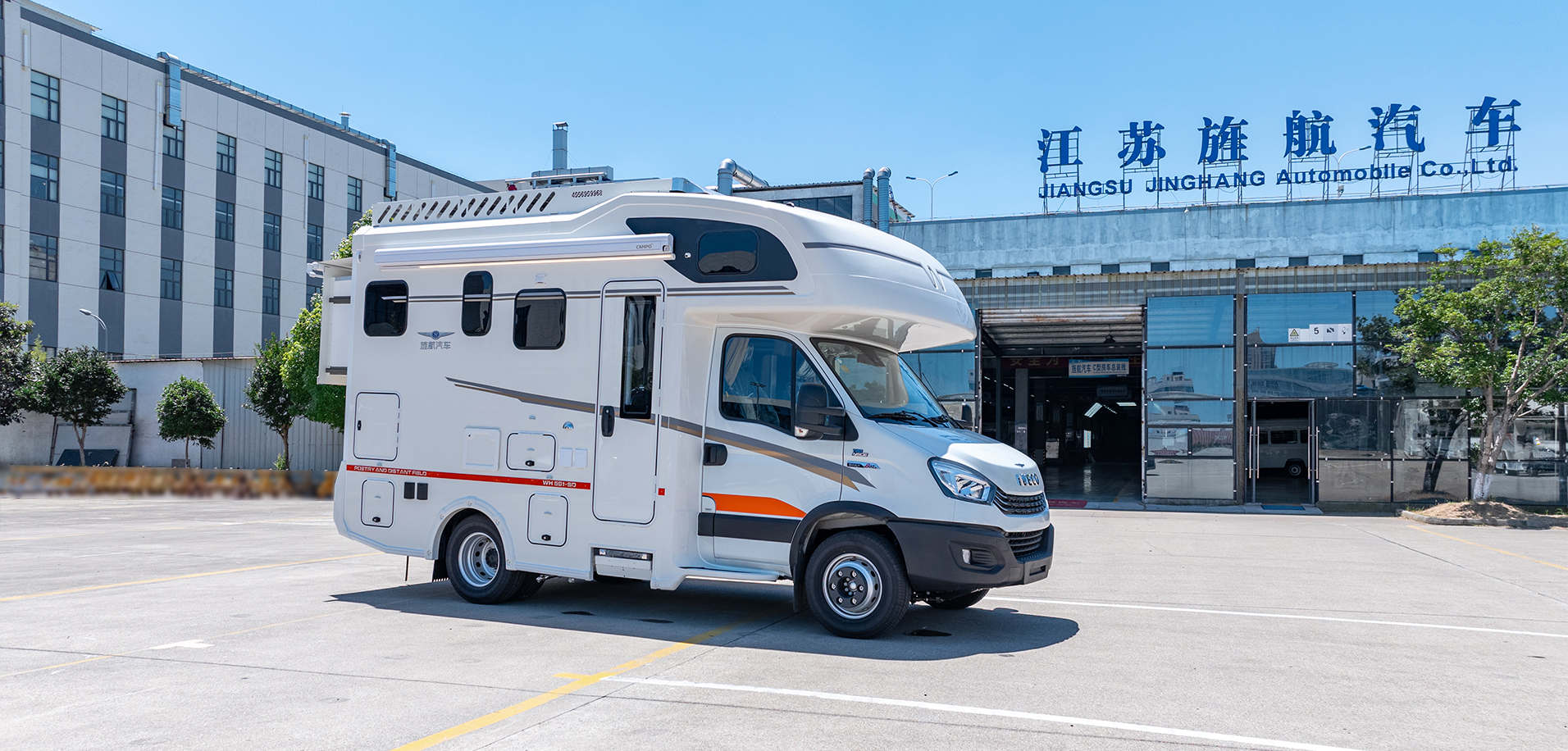

The smart large-space double-expansion RV inherits the family-style front face design. It is a great driving experience and a comfortable and pleasant ride. It is fast and stable, and the rhythm is under your control.
As life goes on, we will enjoy every wonderful moment together; the large and transparent space allows you to happily travel with your family, bringing an experience from the inside out.
|
model |
Domestic Iveco three-leaf spring automatic transmission National VI-6.5T |
category |
WH-591-SD | |
|
layout |
2024 Camozzi large forehead front upper door double expansion side windows, no forehead sunroof |
Number of passengers |
6 people | |
|
Interior systems |
Front |
□White | ||
|
car |
□White | |||
|
Main board |
□According to the actual sample vehicle status | |||
|
Color door panels |
□According to the actual sample vehicle status | |||
|
leather |
□According to the actual sample vehicle status | |||
|
Chassis parameters |
Displacement/Power(ml/kw):2998/123 |
Overall dimensions: 5980*2520*3235mm |
Wheelbase: 3300mm | |
|
Diesel tank: 100L |
Curb weight(kg):4870 |
Transmission: 8AT | ||
|
National VI emission standards |
Tire specifications: 225/75R16LT/6/1 |
Torsion bar front suspension, anti-roll bar/air suspension | ||
|
Widened electric heated rearview mirrors |
Multi-function steering wheel, up and down adjustment |
Mobile Internet and GPS Navigation | ||
|
Cruise control |
Lane Departure Warning (LDWS) |
Tire pressure monitoring | ||
|
Navigation, streaming media rearview mirror |
12V 150A first generator + original 48V second generator |
Driver and passenger airbags + side airbags | ||
|
Configuration |
Basic Configuration | |||
|
Exterior |
Sanqiao passenger door |
Dongtai two-stage electric step |
3m CAMPO manual awning | |
|
Dongtai side expansion cabin awning |
Dongtai rear expansion cabin awning |
Sanqiao exterior flat window | ||
|
Sanqiao manual hatch door |
ITC boarding handrail |
Side expansion compartment | ||
|

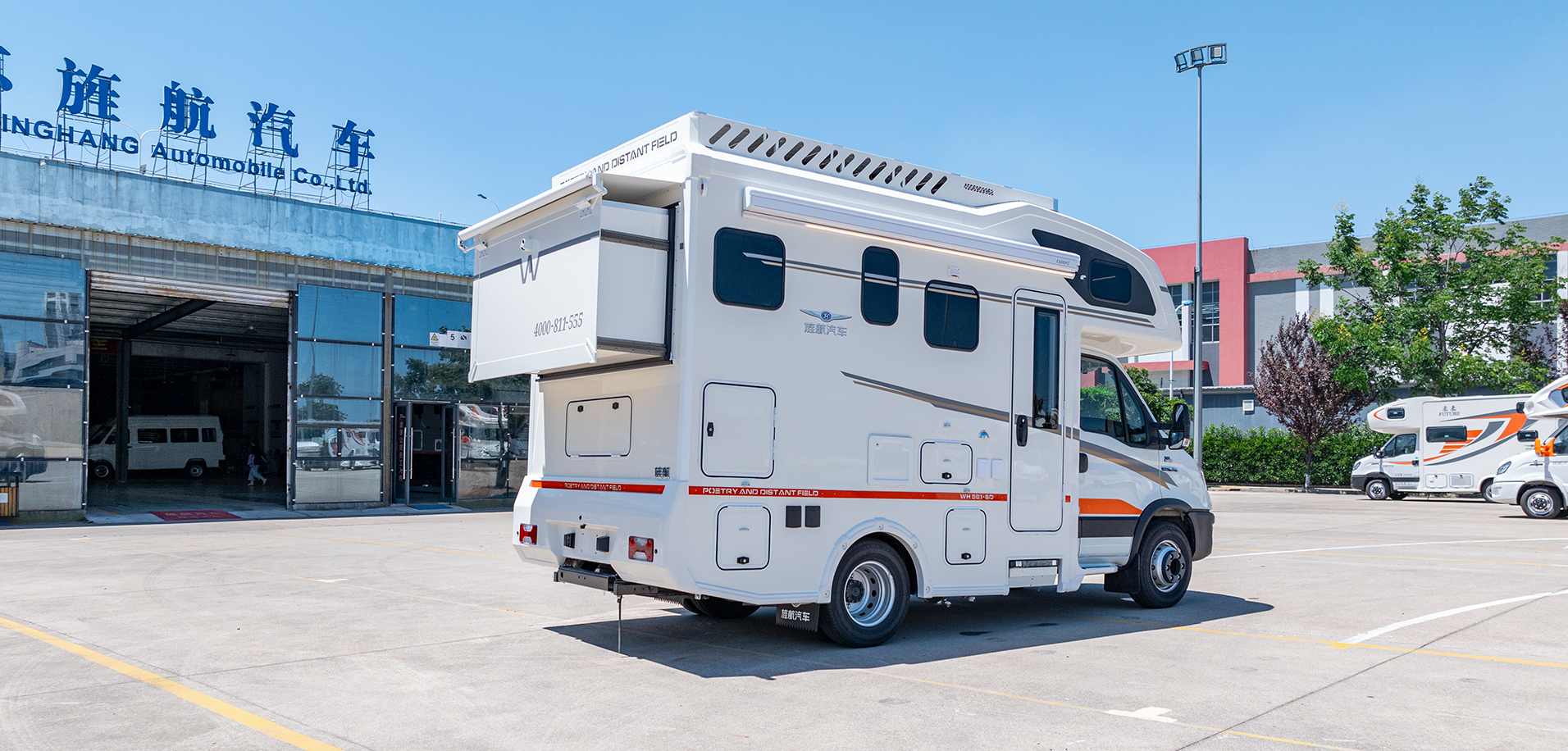

Rear expansion compartment |
|
| ||
|
Body structure |
Bottom torsion subframe |
Double-layer paint-free aluminum plate box |
Central subframe | |
|
XPS Structural Foam Insulation System |
Forehead integral foam PU insulation layer |
PU keel | ||
|
Water system |
Gravity water inlet |
238L in-vehicle fresh water tank |
92L grey water tank | |
|
Manual drain valve |
REICH Grey Water Pipeline |
External water outlet | ||
|
40 mesh water line coarse filter |
Wanwei 10L exchangeable water storage tank |
Buxian Pump System | ||
|
LIELE Clean Water Pipeline |
TRUMA temperature-sensitive automatic drain valve |
| ||
|

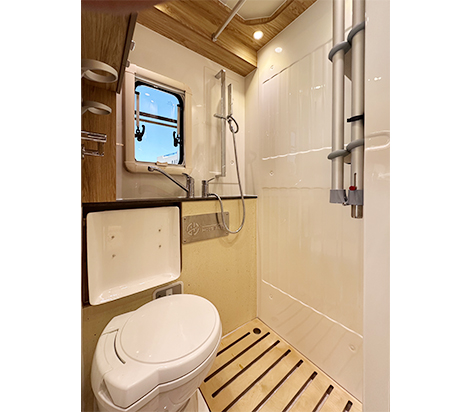

Toilet system |
Dry and wet separation shower curtain*2 |
Thetford horizontal toilet |
Shower Curtain Set | |
|
reich shower set |
Split ABS + Acrylic Plastic Toilet |
REICH hot and cold water countertop faucet | ||
|
ABS+Acrylic Plastic Countertop Sink |
|
| ||
|
Audio and Video |
Rich sound 4.1 channel sound system |
New Zealand Fusheng 210 Bluetooth player |
60 inch electric curtain with red leaf | |
|
Furniture interior |
Memory foam seat cushion |
Four-position mobile lifting table |

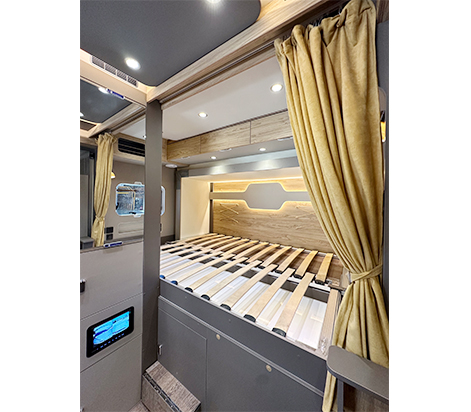

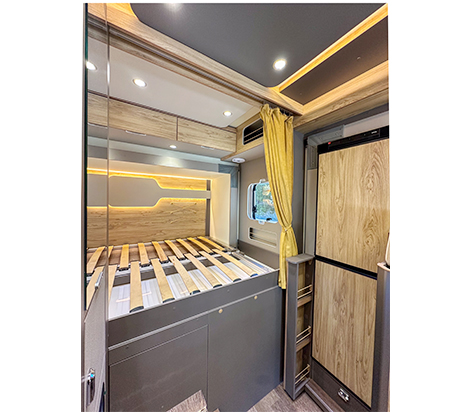

Pull-out bed*2 | |
|
Floor 9052 |

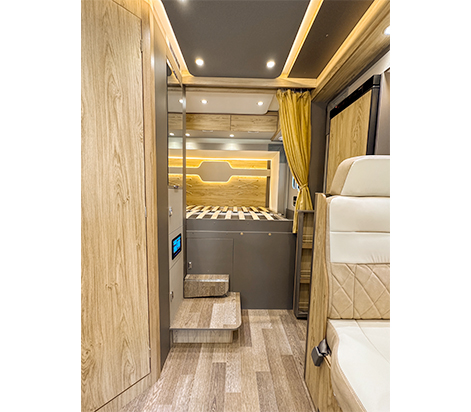

Full car furniture |
| ||
|
Air conditioning exhaust system |
KME3000W Car Split Air Conditioner |
Sanqiao 10-speed electric rainproof ventilation fan |
TRUMA air heating pipe system | |
|
Humphreys 12KW plateau diesel water heating unit |
Humphreys 4KW plateau diesel air heater unit |
Forced exhaust vent | ||
|
Kitchen system |
French steam oven |
Mobo 3KG Washer and Dryer |
Thetford T1156E Refrigerator | |
|
Häfele fast hanging system |
dometic sink |
Moen hot and cold water faucet | ||
|
Chengbang range hood |
|
| ||
|
Energy Systems |
Tuobao 10-inch information control screen |
Tuobao 48V energy control system |
800W solar hard panel | |
|
Tuobao 48V200AH battery pack |
External AC charging port |
Indoor AC220V output socket | ||
|
12V USB charging port |
Wireless Bluetooth control switch |
External power port | ||
|
DX44 driving charging module (direct charging from original vehicle 48V generator) |
DC41-100 DC step-down module (maximum power 1600W) |
Tuobao 48V5000W charging and inverter integrated machine | ||
|
Parking safety |
4-way parking monitoring |
Streaming media driving recorder system |
CO/smoke/liquefied gas alarm | |
|
Fire extinguisher |
|
| ||
|
Vehicle accessories |
10m heat protected cable reel |
10m water hose |
Fuse Kit Set | |
|
Product Instructions |
|
| ||
|
Optional accessories | ||||
|
□ Dometic 3600 inverter air conditioner-200W solar energy |
□ Dometic curved forehead skylight |
□Four-post electric leveling legs | ||
|
□Tobao 48V100A generator |
□Whirlpool water filter kit |
□All car aluminum wheels | ||
|
□New Zealand Fusheng RA770 Bluetooth player |
□2 pairs of 6.5-inch speakers |
□Amplifier + subwoofer | ||
|
□Ultraviolet light + activated carbon water purification |
□Full vehicle made of Filinger sheet metal |
□3M electric awning | ||
|
□800W Nu Skin New Energy Solar Panel |
□48V200AH lithium iron phosphate battery |
□Starry sky top | ||
|
□Original car air suspension |
□Backpack*2 |
□ Rear bicycle + motorcycle rack | ||
|
□KONI shock absorption |
|
| ||
|
illustrate |
Note: If the selected optional parts conflict with the basic configuration, the optional parts will prevail and cover the corresponding basic configuration without further notice. | |||
